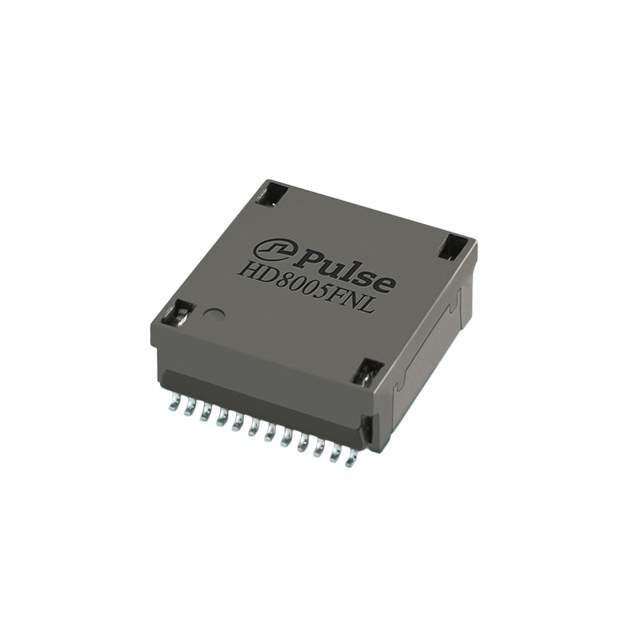

HD8005FNL Real Image
Same model may have multiple batches, images only for reference.

HD8005FNL

Part No HD8005FNL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type HDBase-T
Inductance 100μH
Mounting Style SMD
Dimension 0.539" L x 0.591" W (13.70mm x 15.00mm)
Height - Seated (Maximum) 0.225" (5.72mm)
Temperature Range - Operating 0°C ~ 70°C
Manufacturer Pack Quantity 35
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803117-HD8005FNL
Ultra Librarian 3D Model Ultra Librarian HD8005FNL CAD Model

Description

The Pulse Electronics Network HD8005FNL is a high-quality transformer that is designed to provide reliable performance in a wide range of applications.

  • Applications: HDBase-T
  • Inductance: 100μH
  • Packaging: tube
  • Mounting Style: SMD
  • Dimension: 0.539" L x 0.591" W (13.70mm x 15.00mm)
  • Seated Height: 0.225" (5.72mm)
