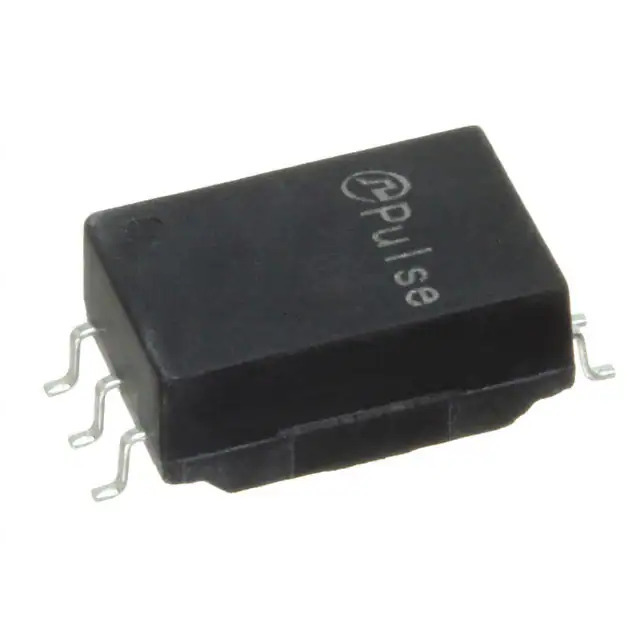

HM2108NL Pulse
Same model may have multiple batches, images only for reference.

HM2108NL

Part No HM2108NL
Manufacturer Pulse
Catalog Pulse Transformers
Description XFMR CMC MODULE AECQ BATT MNGT
Datasheet
HM2108NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse Electronics
Series -
Package Tube
Product Status Active
Transformer Type -
Inductance 135µH
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.335" L x 0.663" W (8.50mm x 16.84mm)
Height - Seated (Max) 0.226" (5.75mm)
Weight -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1370277-HM2108NL
Ultra Librarian 3D Model Ultra Librarian HM2108NL CAD Model

Description

The 1370277-HM2108NL is a pulse transformer designed for use in electronic devices and manufactured by Pulse Electronics.

  • Category: Transformers - Pulse Transformers
  • Package: Tube
  • Status: Active
  • Temperature Range: 0°C to 70°C
  • Mounting Type: Surface Mount
  • Inductance: 135μH
