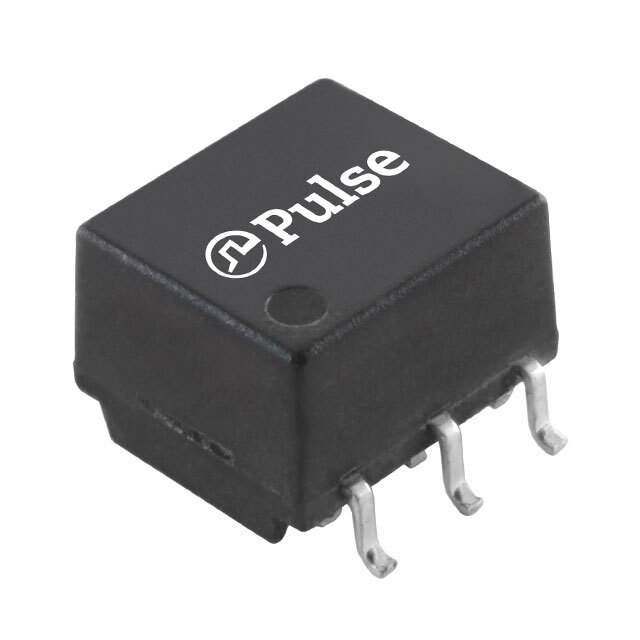

HMU2103NLT Real Image
Same model may have multiple batches, images only for reference.

HMU2103NLT

Part No HMU2103NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description MDL, SIN, XFMR-CMC, 1:1, 4.3KV,  /  150µH Pulse Transformer 1:1 Surface Mount
Datasheet
HMU2103NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel
Inductance 150µH
Mounting SMD (SMT)
Dimension 0.300" L x 0.265" W (7.62mm x 6.73mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating -40°C ~ 125°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names HMU2103NLT-ND,1840-1261-6,1840-1261-2,1840-1261-1
Standard Package 700
Win Source Part Number 1063269-HMU2103NLT
Ultra Librarian 3D Model Ultra Librarian HMU2103NLT CAD Model

Description

The HMU2103NLT is a pulse transformer with a tape & reel package and a standard package of 700.

  • Inductance: 150µH
  • Temperature Range: -40°C to 125°C
  • Height of Seated Transformer: 0.225 inches (5.72mm)
  • Dimension: 0.300 inches L x 0.265 inches W (7.62mm x 6.73mm)
  • Mounting: SMD (SMT) mountable
