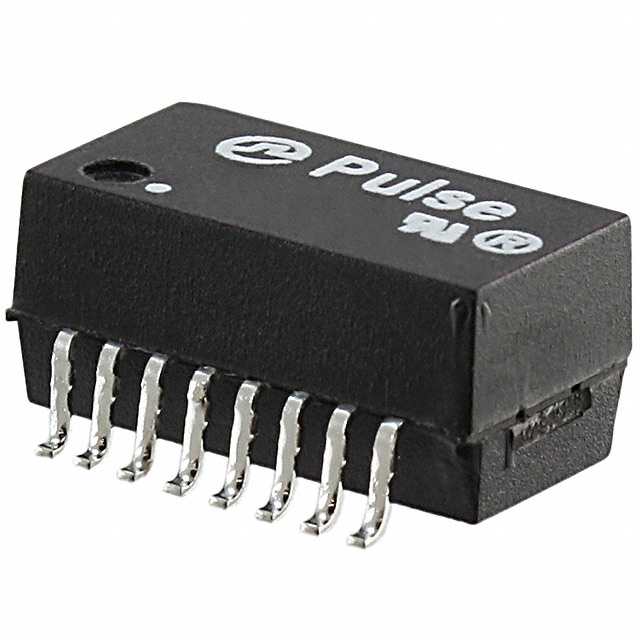

T1144NLT Pulse T1144NLT real image7017
T1144NLT Pulse T1144NLT real image7017
Same model may have multiple batches, images only for reference.

T1144NLT

Part No T1144NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR 1CT:1CT/1CT:2.4CT 1/1MH / 1mH, 1mH T1/E1 (Dual) Pulse Transformer 1CT:1CT, 1CT:2.4CT Surface Mount
Datasheet
T1144NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Transformer Type T1/E1 (Dual)
Inductance 1mH, 1mH
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Standard Package 600 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 351049-T1144NLT
Ultra Librarian 3D Model Ultra Librarian T1144NLT CAD Model

Description

The 351049-T1144NLT is a pulse transformer used in T1/E1 (Dual) applications.

  • Mounting: It is a surface mount component.
  • Size: 0.500" L x 0.280" W (12.70mm x 7.11mm).
  • Inductance: 1mH.
  • Height: 0.245" (6.22mm) when seated.
  • Status: An active product from the manufacturer Pulse.
  • Application: This pulse transformer is commonly used in telecommunications and networking applications.
