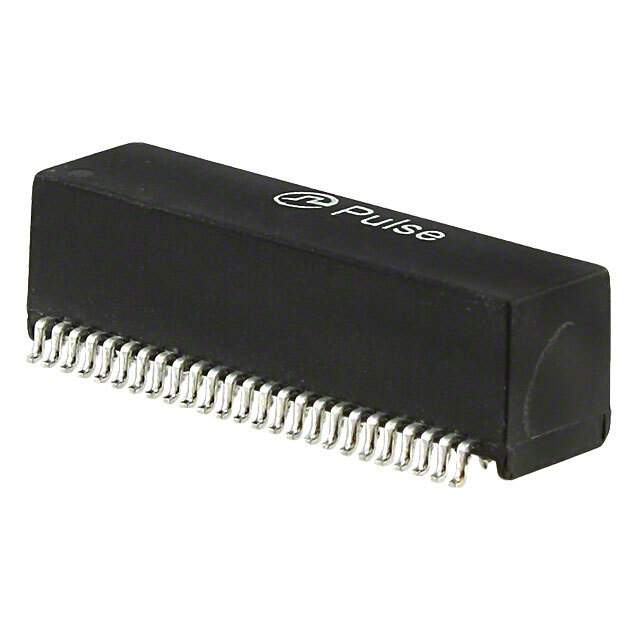

HX5020NLT

Part No HX5020NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description 1000BASE-T Magnetics Module | TRANSFORMER MODULE GIGABIT 2PORT
Datasheet
HX5020NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Style SMD
Parts Dimension 1.100" L x 0.297" W (27.94mm x 7.54mm)
Height - Seated (Maximum) 0.341" (8.66mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.06 oz (1.71g)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1182663-HX5020NLT
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HX5020NLT CAD Model

Description

The Pulse Electronics Network 1182663-HX5020NLT is an encapsulated isolation and data interface transformer that is designed for use in SMD mountings.

  • Mounting: SMD
  • Inductance: N/A
  • Weight: 0.06 oz (1.71g)
  • Supply and Demand: balanced
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Dimensions: 1.100" L x 0.297" W (27.94mm x 7.54mm)
  • Height: 0.341" (8.66mm) Maximum
