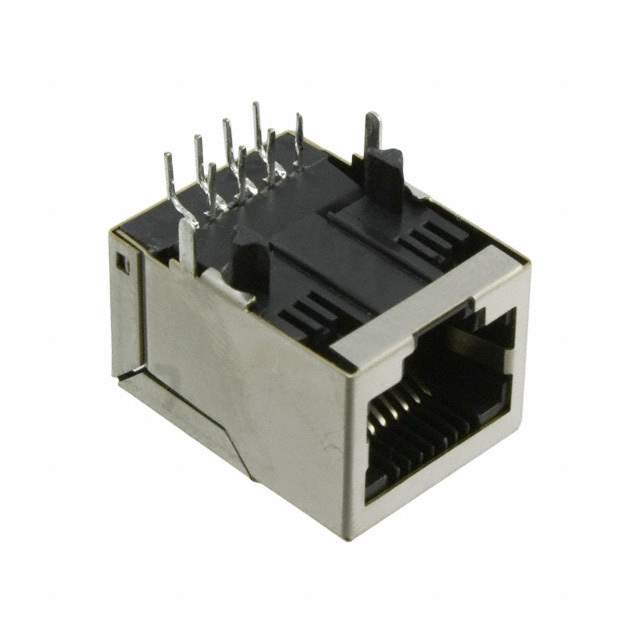

J00-0042NL Real Image
Same model may have multiple batches, images only for reference.

J00-0042NL

Part No J00-0042NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
J00-0042NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tube
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Does Not Contain LED
Number of Cores per Jack 4
Shielding Shielded
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number J000042NL,553-1617-5,J00-0042NL-ND
Standard Package 30
Win Source Part Number 1333943-J00-0042NL
Ultra Librarian 3D Model Ultra Librarian J00-0042NL CAD Model

Description

Pulse Electronics Modular Connector Jacks With Magnetics are high-quality connectors that are widely used in various electronic applications.

  • Connector: J00-0042NL
  • Shielding: Shielding feature
  • Popularity: Medium popularity
  • Status: Balance supply and demand
