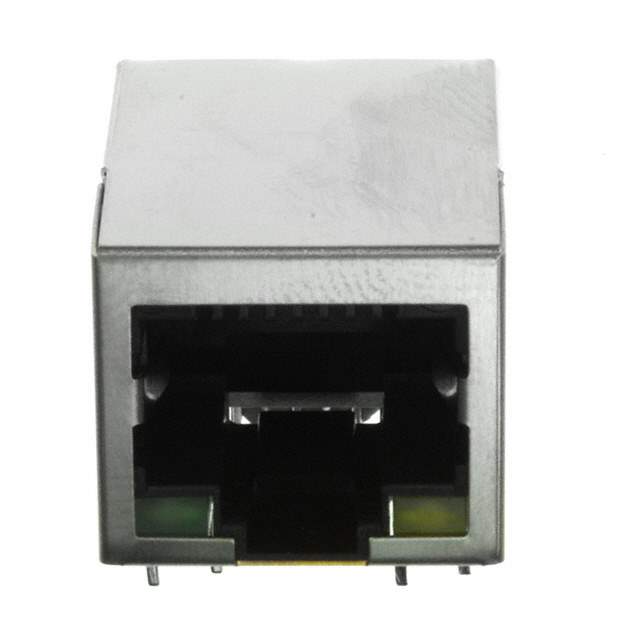

J0026D01BNL Real Image
Same model may have multiple batches, images only for reference.

J0026D01BNL

Part No J0026D01BNL
Manufacturer Pulse
Catalog Modular Connectors
Description 10/100 Base-TX RJ45 1x1 Tab-DOWN with LEDs 8-pin (J0 series) integrated magnetics connector (ICM), designed to | CONN MAGJACK 1PORT 100 BASE-TX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Pulse Electronics Network
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX
Mounting Style Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Yellow
Number of Cores per Jack 5
Shielding Shielded
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0μin (0.38μm)
Shield Material Brass
Dielectric Material Thermoplastic
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1191315-J0026D01BNL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian J0026D01BNL CAD Model

Description

The Pulse Electronics Network 1191315-J0026D01BNL is a through-hole RJ45 connector with a single port and 90-degree angle orientation.

  • Features: Board Guide, Shielded
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin
  • Contact Material: Phosphor Bronze
  • Height Above Board: 0.545"
  • Application: 10/100 Base-TX
  • Shield Material: Brass
  • Dielectric Material: Thermoplastic
  • Packaging: Trays
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 30
