Same model may have multiple batches, images only for reference.

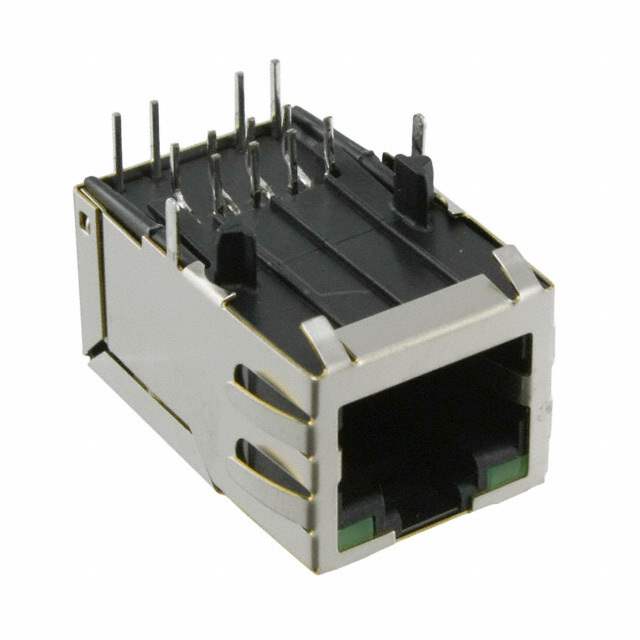

J1012F21KNL Real Image
Same model may have multiple batches, images only for reference.

J1012F21KNL

Part No J1012F21KNL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN MAGJACK 1PORT 100 BASE-TX
Datasheet
J1012F21KNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.550" (13.97mm)
LED Color Green - Green
Number of Cores per Jack 4
Features Board Guide
Contact Finish Gold
Temperature Range - Operating 0°C to 70°C
Contact Finish Thickness 15μin (0.38μm)
Shield Material Brass
Housing Material Thermoplastic
Win Source Part Number 205722-J1012F21KNL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian J1012F21KNL CAD Model

Description

The J1012F21KNL is a single port RJ45 connector from Pulse Electronics Corporation.

  • Applications: 10/100 Base-TX and AutoMDIX
  • Orientation: 90-degree angle
  • Mounting: Through hole
  • LED Color: Green-green
  • Housing Material: Thermoplastic
  • Supply and Demand Status: Balanced
