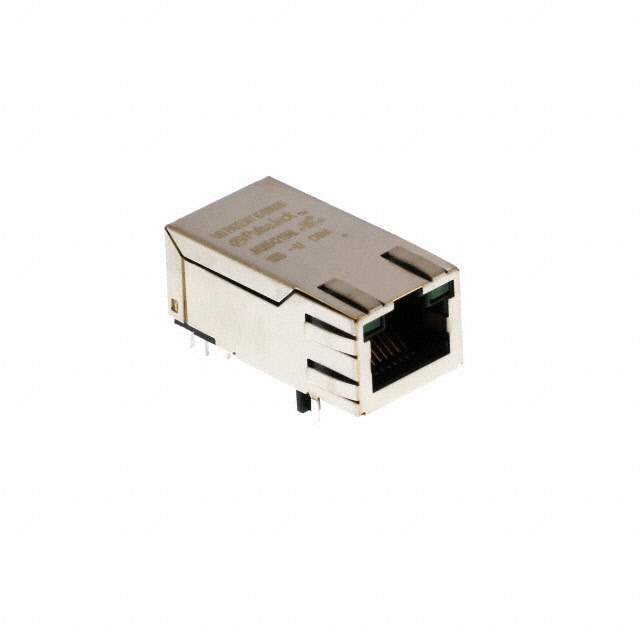

Same model may have multiple batches, images only for reference.

JK0654219NL

Name: JK0654219NL
Brand: Pulse
SKU: 608904
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

Part No	JK0654219NL
Manufacturer	Pulse
Catalog	Modular Connectors
Description	integrated magnetics connector \| CONN INTEGRATED MODULE 1PORT
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Pulse Electronics Network
Packaging	Tray
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100/1000 Base-T, AutoMDIX
Mounting Style	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.546" (13.87mm)
LED Color	Green - Green
Number of Cores per Jack	8
Shielding	Shielded, EMI Finger
Features	Board Guide
Tab Direction	Up
Contact Material	Phosphor Bronze
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	30.0μin (0.76μm)
Shield Material	Copper Alloy
Dielectric Material	Thermoplastic
Manufacturer Pack Quantity	40
MSL Level	1 (Unlimited)
Win Source Part Number	1191592-JK0654219NL
Manufacturer Homepage	www.pulseeng.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian JK0654219NL CAD Model

Alternative Products

Description

The connector is a high-quality connector designed for use in electronic circuits manufactured by Pulse Electronics Network.

Popularity: Medium
Supply and Demand: Limited
Mounting: Through-hole
Board Guide: Yes
Connector Type: RJ45
Contact Finish: Gold
Height Above Board: 0.546 inches
Shielding: EMI finger shielding
Temperature Range: 0°C to 70°C
