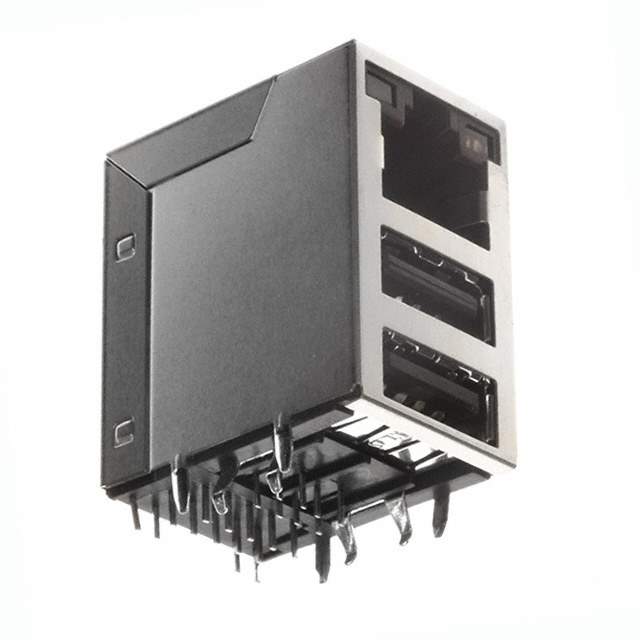

JW0-0006NL

Part No JW0-0006NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-TX PCB / 1 Port RJ45 with USB A, DualThrough Hole 10/100/1000 Base-TX, AutoMDIX
Datasheet
JW0-0006NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45 with USB A, Dual
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 1.221" (31.01mm)
LED Color Green - Green, Yellow
Number of Cores per Jack 8
Shielding Shielded
Features Board Lock
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number JW00006NL,553-1368
Standard Package 25
Win Source Part Number 1333934-JW0-0006NL
Ultra Librarian 3D Model Ultra Librarian JW0-0006NL CAD Model

Description

The Pulse Electronics 1333934-JW0-0006NL is a connector that is used in modular connector jacks with magnetics applications.

  • Packaging: Tray
  • Features: Board Lock
  • Connector Type: RJ45 with USB A, dual
  • Row: 1
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Contact Material: Phosphor Bronze
  • Height Above Board: 1.221" (31.01mm)
  • Shielded: Yes
  • Housing Material: Thermoplastic
  • Applications: 10/100/1000 Base-TX, AutoMDIX
  • Orientation: 90° Angle (Right)
  • Port: 1
  • Mounting Type: Through Hole
  • LED Color: Green - Green, Yellow
  • Cores per Jack: 8
  • Tab Direction: Up
  • Shield Material: Copper Alloy
  • Temperature Range: 0°C ~ 70°C
  • RoHS Compliant: Yes
