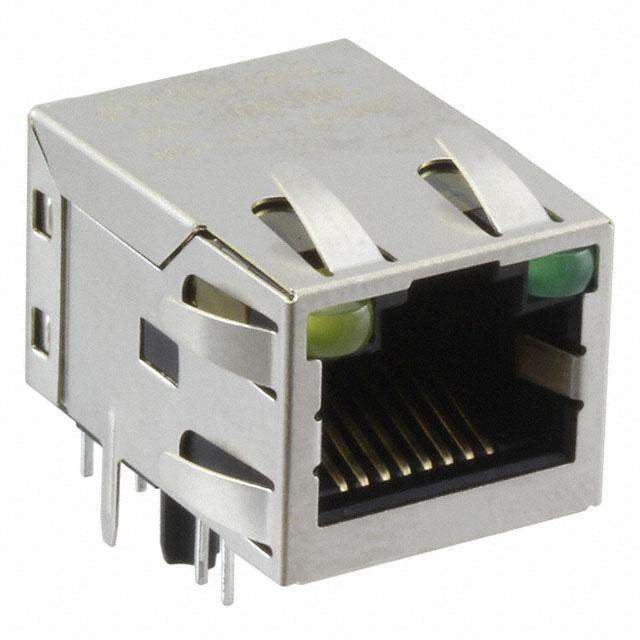

JXD1-0026NL Pulse Electronics
Same model may have multiple batches, images only for reference.

JXD1-0026NL

Part No JXD1-0026NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB
Datasheet
JXD1-0026NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201270-JXD1-0026NL
Manufacturer Pulse Electronics
Category Connectors, Interconnects- Modular Connectors- Modular Connector Jacks With Magnetics
Series PULSEJACK™ JXD0
Package Tray
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian JXD1-0026NL CAD Model

Description

The Pulse Electronics Modular Connector Jack with Magnetics is a high-quality connector for networking applications. Pulse Electronics manufactures it.

  • Interface: RJ45
  • Mounting Type: Through Hole
  • Number of Rows: 1
  • Number of Ports: 1
  • Network Type: 10/100/1000 Base-T
  • Functionality: AutoMDIX
  • Package: Tray
  • Status: Active
