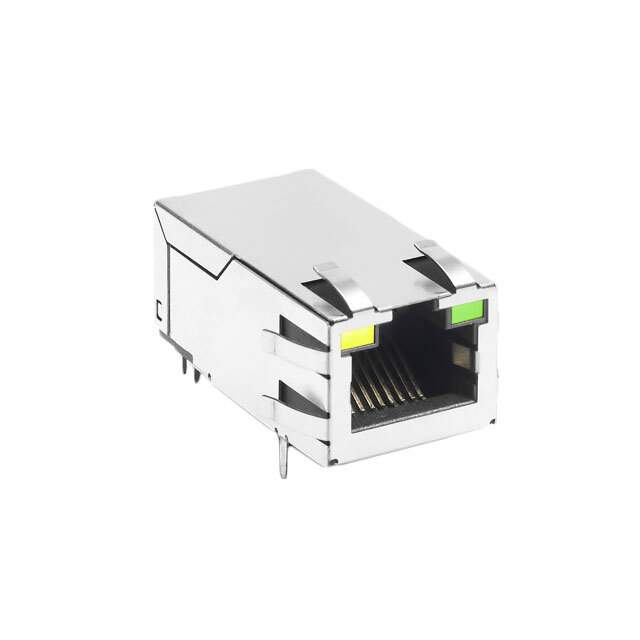

JXK0-0136NL Real Image
Same model may have multiple batches, images only for reference.

JXK0-0136NL

Part No JXK0-0136NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
JXK0-0136NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.546" (13.87mm)
LED Color Yellow, Green - Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 50.0µin (1.27µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 553-2729,553-2729-5,-JXK0-0136NL,JXK0-0136NL-ND,553-2729-ND
Standard Package 45
Win Source Part Number 1333906-JXK0-0136NL
Ultra Librarian 3D Model Ultra Librarian JXK0-0136NL CAD Model

Description

The Pulse Electronics 1333906-JXK0-0136NL is a shielded modular connector jack with magnetics designed for 10/100/1000 Base-T and AutoMDIX applications.

  • Features: Board guide
  • Orientation: Right angle
  • Mounting: Through-hole
  • Connector Type: RJ45
  • Number of Rows: Single
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Contact Material: Phosphor bronze
  • Height Above Board: 0.546" (13.87mm)
  • Shielding: EMI finger
  • Housing Material: Thermoplastic
  • Standard Package: 45
  • LED Color: Yellow and green
  • Number of Cores per Jack: 8
  • Tab Direction: Up
  • Shield Material: Copper alloy
  • Temperature Range: -40°C ~ 85°C
  • Compliance: RoHS compliant
