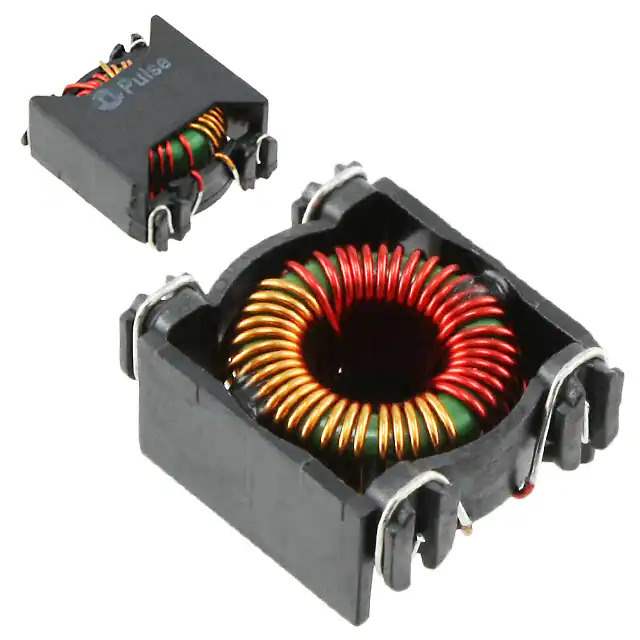

P0420NL Real Image
Same model may have multiple batches, images only for reference.

P0420NL

Part No P0420NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 3.3A 2LN SMD
Datasheet
P0420NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse
Package Tube
Product Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 3.3A
DC Resistance (DCR) (Max) 60mOhm
Temperature Range - Operating -40°C ~ 120°C
Mounting Type Surface Mount
Size / Dimension 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Max) 0.390" (9.91mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 651416-P0420NL
Ultra Librarian 3D Model Ultra Librarian P0420NL CAD Model

Description

The 651416-P0420NL is a common mode choke filter manufactured by Pulse.

  • Category: Filters
  • Package: Tube
  • Size / Dimension: 0.770" L x 0.670" W (19.56mm x 17.02mm)
  • Height - Max: 0.390" (9.91mm)
  • Current Rating (Max): 3.3A
  • Standard Package: 30 pcs
  • Filter Type: Power Line
  • Number of Lines: 2
  • DCR (DC Resistance): 60mOhm
  • Mounting Type: Surface Mount
  • Package / Case: Horizontal, 4 PC Pad
  • Operating Temperature: -40°C ~ 120°C
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8548.00.0000
  • Approval Agency: Not Specified
