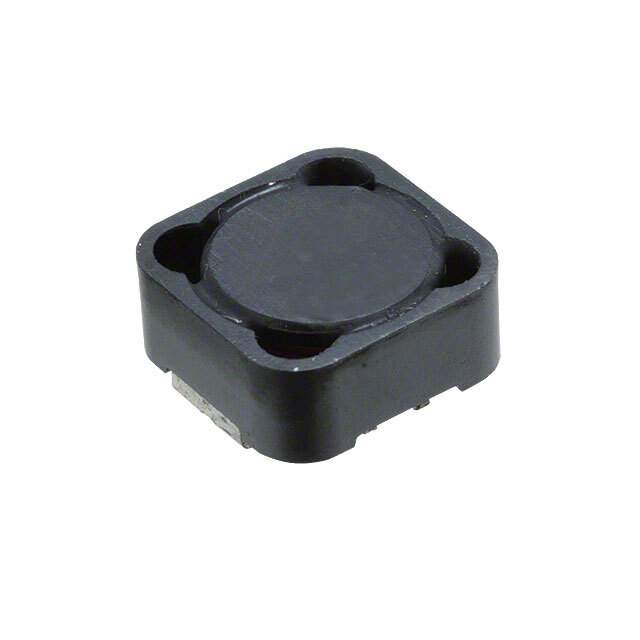

Same model may have multiple batches, images only for reference.

P1170.222NLT

Name: P1170.222NLT
Brand: Pulse
SKU: 929788
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P1170.222NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 9.6A 5.7MOHM SMD
Datasheet	P1170.222NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors
Estimated Pruduction Lead Time	15 Weeks
Features	2.2 µH Shielded Wirewound Inductor 9.6 A 5.7mOhm Max Nonstandard -
Manufacturer	Pulse
Series	P1170NL
Package	Reel - TR
Operating Temperature Range	-40°C ~ 130°C
Mounting	Surface Mount
Package	Nonstandard
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	553-1963-6, 553-1963-2, P1170.222NL, P1170222NLT, P1170.222NLT-ND, 553-1963-1
Quantity per package	500
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	929788-P1170.222NLT
Ultra Librarian 3D Model	Ultra Librarian P1170.222NLT CAD Model

Alternative Products

Description

The Pulse P1170NL series is a 2.2 µH shielded wirewound inductor with a maximum current rating of 9.6 A and a maximum resistance of 5.7 mOhm.

Operating Temperature Range: -40°C to 130°C
Package: reel of 500
RoHS: compliant
REACH: unaffected
ECCN: EAR99
HTSUS: 8504.50.4000
