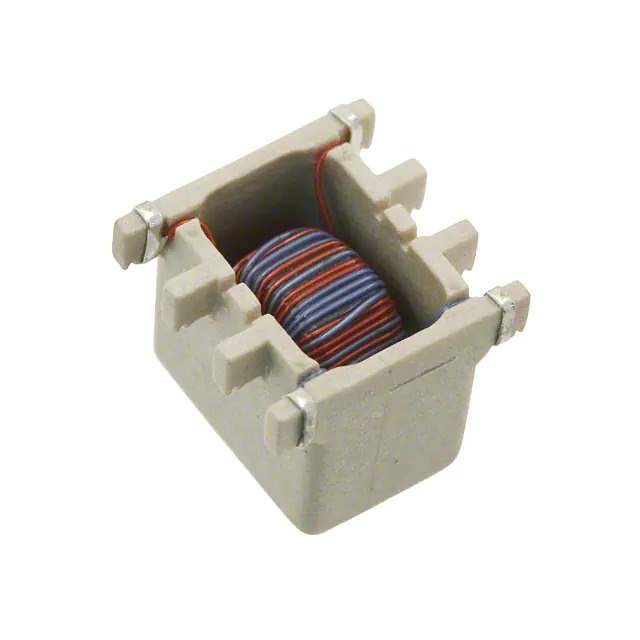

PA0184NL Real Image
Same model may have multiple batches, images only for reference.

PA0184NL

Part No PA0184NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1 1.2MH
Datasheet
PA0184NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Inductance 1.2mH
ET (Volt-Time) 27.2VµS
Mounting Type Surface Mount
Size / Dimension 0.355" L x 0.340" W (9.02mm x 8.64mm)
Height - Seated (Max) 0.300" (7.62mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 652317-PA0184NL
Ultra Librarian 3D Model Ultra Librarian PA0184NL CAD Model

Description

The 652317-PA0184NL is a pulse transformer manufactured by Pulse.

  • Category: Transformers - Pulse Transformers
  • Size: 0.355" L x 0.340" W (9.02mm x 8.64mm)
  • Mounting: Surface mount
  • Temperature Range: -40°C to 130°C
  • Inductance: 1.2mH
  • Maximum Seated Height: 0.300" (7.62mm)
  • Standard Package: 50 pieces
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8504.31.2000
