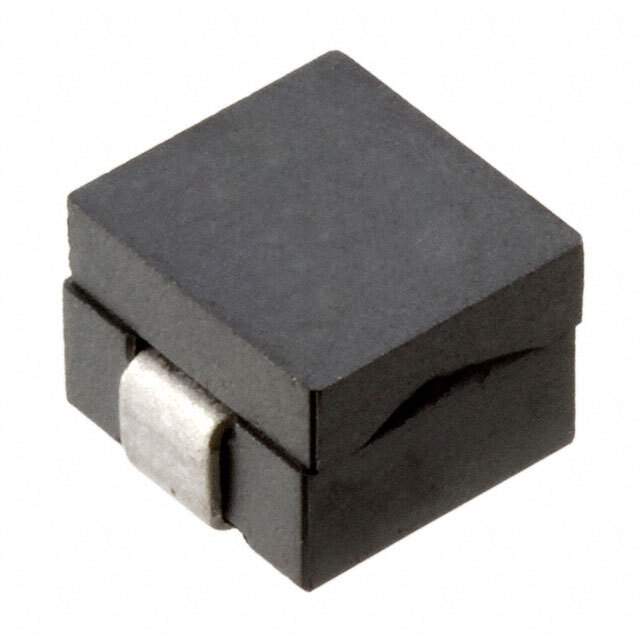

Same model may have multiple batches, images only for reference.

PA0512.101NLT

Name: PA0512.101NLT
Brand: Pulse
SKU: 267337
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	PA0512.101NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 105NH 31A 0.32 MOHM
Datasheet	PA0512.101NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Pulse Electronics Corporation
Packaging	Reel - TR
Status	Active
Material - Core	Ferrite
Inductance	105nH
Tolerance	±20%
Current Rating	31A
Current - Saturation	46A
DC Resistance (DCR)	0.32 mOhm
Temperature Range - Operating	-40°C to 130°C
Mounting	SMD (SMT)
Height - Seated (Max)	0.195" (4.96mm)
Win Source Part Number	026367-PA0512.101NLT
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian PA0512.101NLT CAD Model

Alternative Products

Description

The Pulse Electronics Corporation PA0512.101NLT inductor is a high-quality electronic component that is perfect for use in a wide range of applications.

Current Rating: 31A
Inductance: 105nH
Core Material: ferrite
Current Saturation: 46A
Tolerance: ±20%
Supply and Demand Status: sufficient
