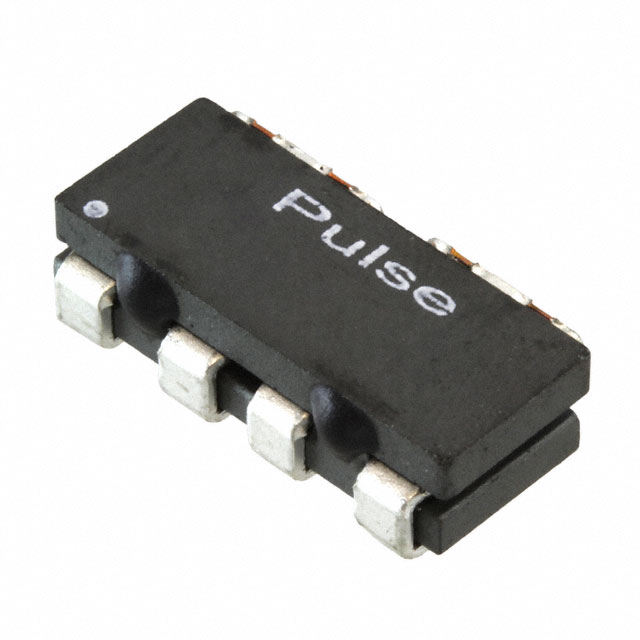

Same model may have multiple batches, images only for reference.

PA1312NLT

Name: PA1312NLT
Brand: Pulse
SKU: 267370
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA1312NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 310NH 40A 0.5 MOHM SMD
Datasheet	PA1312NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Pulse Electronics Corporation
Packaging	Reel - TR
Status	Active
Inductance	310nH
Tolerance	±20%
Current Rating	40A
DC Resistance (DCR)	0.5 mOhm Max
Temperature Range - Operating	-40°C to 130°C
Mounting	SMD (SMT)
Height - Seated (Max)	0.205" (5.20mm)
Win Source Part Number	103763-PA1312NLT
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PA1312NLT CAD Model

Alternative Products

Description

The 103763-PA1312NLT inductor from Pulse Electronics Corporation is an active component.

Current Rating: 40A
Inductance: 310nH
Height: 0.205 inches
Mounting Type: SMD
Tolerance: +/-20%
DC Resistance (DCR): 0.5 mOhm Max
