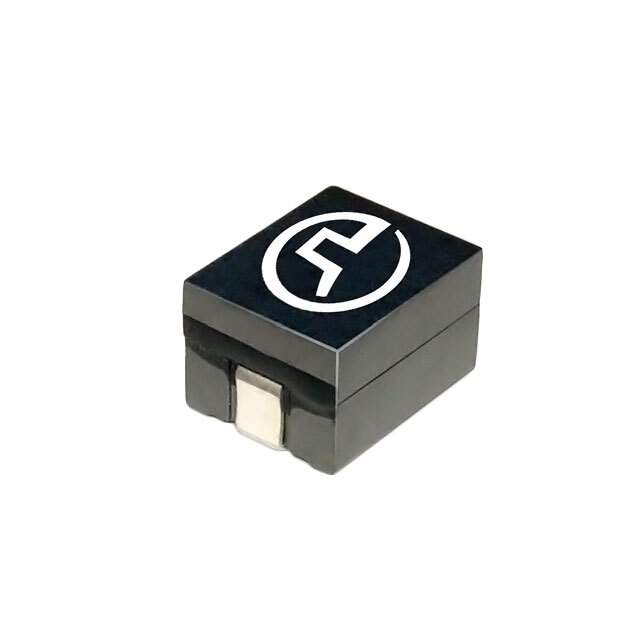

Same model may have multiple batches, images only for reference.

PA1320.171NLT

Name: PA1320.171NLT
Brand: Pulse
SKU: 791338
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA1320.171NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 180NH 40A 0.48 MOHM / Inductor Power Bead Wirewound 0.18uH/0.174uH 20% 40A 0.00048Ohm DCR T/R
Datasheet	PA1320.171NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Pulse Electronics Corporation
Series	PA1320NL
Packaging	Reel package
Inductance	180nH
Tolerance	±20%
Current Rating	40A
Current - Saturation	52A
Shielding	Shielded
DC Resistance (DCR)	0.48 mOhm
Operating Temperature Range	-40°C ~ 130°C
Mounting	SMD
Package	Nonstandard
Dimension	0.410" L x 0.315" W (10.41mm x 8.00mm)
Height - Seated (Maximum)	0.256" (6.50mm)
Win Source Part Number	791338-PA1320.171NLT
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PA1320NL
Introduction Date	November 07, 2006
ECCN	EAR99
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian PA1320.171NLT CAD Model

Alternative Products

Description

The Pulse Electronics Corporation PA1320NL series inductor is a high-performance shielded inductor designed for use in a variety of applications.

Current Rating: 40A
Inductance: 180nH
DC Resistance: 0.48 mOhm
Mounting Type: Surface Mount
Package: Nonstandard
Tolerance: ±20%
Operating Temperature Range: -40°C to 130°C
