Same model may have multiple batches, images only for reference.

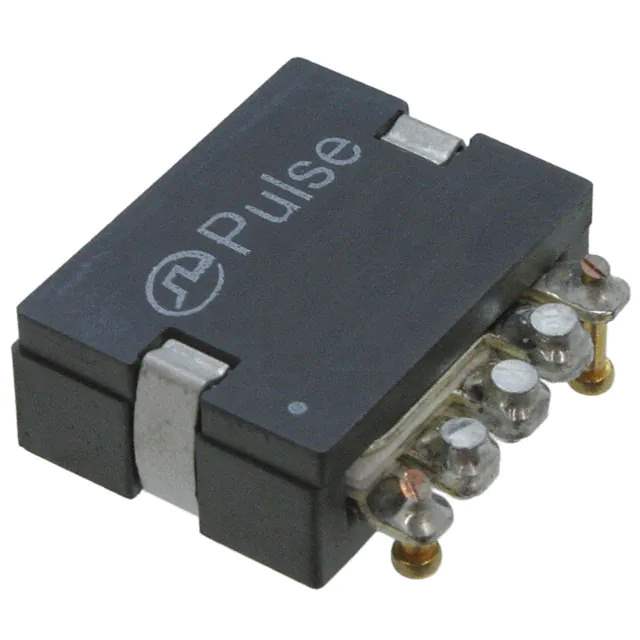

PA1494.242NLT Real Image
Same model may have multiple batches, images only for reference.

PA1494.242NLT

Part No PA1494.242NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 2.42UH 30A 1.8MOHM SMD / 2.42 μH Shielded Planar Inductor 30 A 1.8mOhm Max Nonstandard
Datasheet
PA1494.242NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PA1494NL
Package Tape & Reel
Product Status Active
Type Planar
Inductance 2.42 µH
Tolerance ±15%
Current Rating (Amps) 30 A
Current - Saturation (Isat) 35A
Shielding Shielded
DC Resistance (DCR) 1.8mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.780" L x 0.770" W (19.81mm x 19.56mm)
Height - Seated (Max) 0.290" (7.37mm)
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 748144-PA1494.242NLT
Ultra Librarian 3D Model Ultra Librarian PA1494.242NLT CAD Model

Description

The 748144-PA1494.242NLT is a fixed inductor used in electronic devices. It belongs to the Inductors, Coils, Chokes - Fixed Inductors category and is part of the PA1494NL series.

  • Package: Tape & reel
  • Shielded: Yes
  • Size/Dimension: 0.780" L x 0.770" W (19.81mm x 19.56mm)
  • Inductance: 2.42 μH
  • Maximum Seated Height: 0.290" (7.37mm)
  • Standard Package Quantity: 250 pieces
  • Tolerance: ±15%
  • DC Resistance (DCR): 1.8mOhm max
  • Mounting: Surface mount
  • Package/Case: Nonstandard
  • Operating Temperature: -40°C to 130°C
  • ECCN: EAR99
  • Product Status: Active
  • Current Rating (amps): 30A
  • Current Saturation (Isat): 35A
