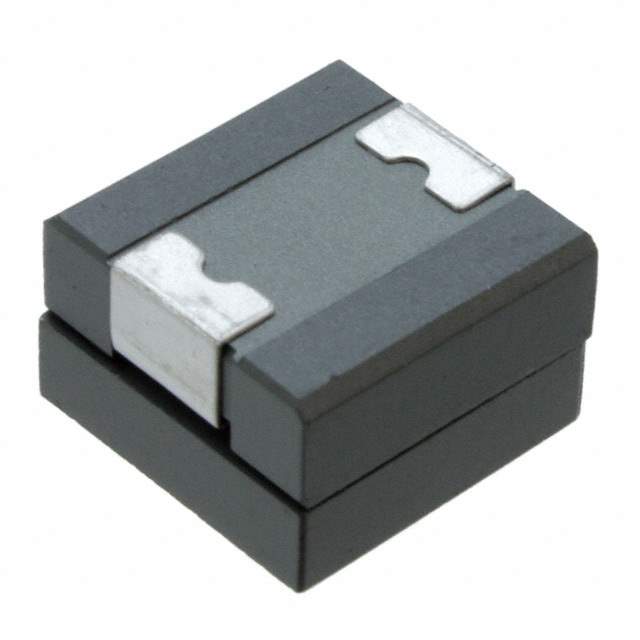

Same model may have multiple batches, images only for reference.

PA1513.441NLT

Name: PA1513.441NLT
Brand: Pulse
SKU: 810426
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA1513.441NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 440NH 30A 0.53 MOHM / SMT Power Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Pulse Electronics Power
Packaging	Reel
Inductance	440nH
Tolerance	±20%
Current Rating (Amps)	30A
Current - Saturation	35A
Shielding	Shielded
DC Resistance (DCR)	0.53mOhm
Temperature Range - Operating	-40°C ~ 130°C
Mounting Style	SMD
Manufacturer Package	Nonstandard
Dimension	0.530" L x 0.510" W (13.46mm x 12.95mm)
Height - Seated (Maximum)	0.315" (8.00mm)
Manufacturer Pack Quantity	400
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	810429-PA1513.441NLT
Ultra Librarian 3D Model	Ultra Librarian PA1513.441NLT CAD Model

Alternative Products

Description

The inductor from Pulse Electronics Power is a shielded surface-mount device.

Height: 0.315 inches (8.00mm)
Dimension: 0.530 inches L x 0.510 inches W (13.46mm x 12.95mm)
Inductance: 440nH
DC Resistance (DCR): 0.53mOhm
Current Rating: 30A
Tolerance: ±20%
