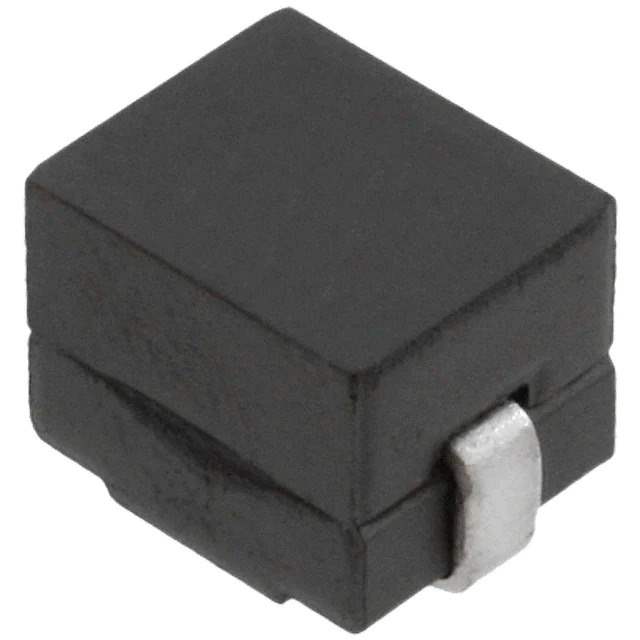

The 748146-PA2607.271NLT is a fixed inductor used in electronic circuits. It is part of the PA2607NL series and comes in a tape & reel package. The inductor is shielded for optimal performance. It has a size of 0.406" L x 0.301" W (10.31mm x 7.65mm) and a height of 0.287" (7.30mm). The 748146-PA2607.271NLT is suitable for surface mount mounting. It has an inductance of 270 nH with a tolerance of ±15%. The inductor has a DC resistance (DCR) of 0.29mOhm and can operate in a temperature range of -40°C to 130°C. The current rating is 31 A and the inductance frequency test is performed @ 100 kHz. The 748146-PA2607.271NLT is an active product from Pulse. It is unaffected by REACH regulations and has an ECCN classification of EAR99. The MSL level is 1, which means it has unlimited moisture sensitivity. The HTSUS code for this inductor is 8504.50.4000.

• Series: PA2607NL
• Inductance: 270 nH
• Tolerance: ±15%
• Size: 0.406" L x 0.301" W (10.31mm x 7.65mm)
• Height: 0.287" (7.30mm)
• DC Resistance (DCR): 0.29mOhm
• Operating Temperature Range: -40°C to 130°C
• Current Rating: 31 A
• Inductance Frequency Test: 100 kHz
• Package: Tape & Reel
• ECCN: EAR99
• MSL Level: 1
• HTSUS Code: 8504.50.4000
