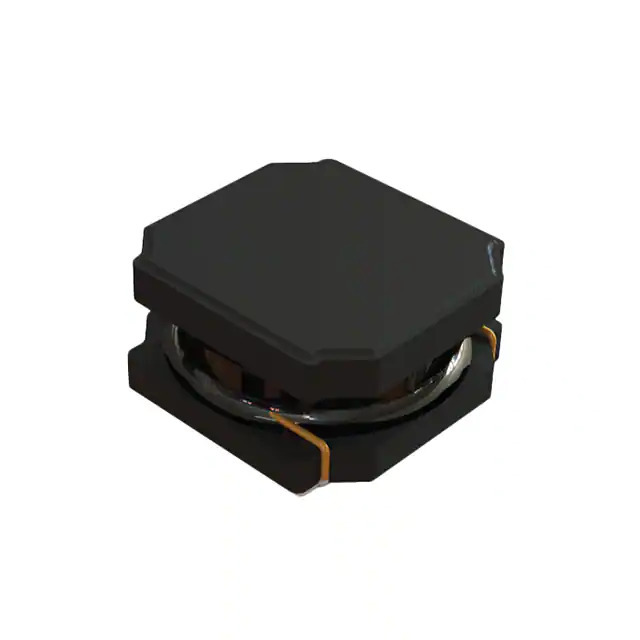

PA4332.102NLT Pulse
Same model may have multiple batches, images only for reference.

PA4332.102NLT

Part No PA4332.102NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 1UH 5.8A 26 MOHM SMD
Datasheet
PA4332.102NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse Electronics
Series PA4332.XXXNLT
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Iron
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 5.8 A
Current - Saturation (Isat) 8.5A
Shielding Shielded
DC Resistance (DCR) 26mOhm Max
Q @ Freq -
Frequency - Self Resonant 37MHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.165" L x 0.165" W (4.20mm x 4.20mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1370455-PA4332.102NLT
Ultra Librarian 3D Model Ultra Librarian PA4332.102NLT CAD Model

Description

The 1370455-PA4332.102NLT is a fixed inductor designed for a temperature range of -40°C to 125°C.

  • Manufacturer: Pulse Electronics
  • Series: PA4332.XXXNLT
  • Type: Drum Core, Wirewound
  • Mounting Type: Surface Mountable
  • Package/Case: Nonstandard
  • Size: 0.165" L x 0.165" W (4.20mm x 4.20mm)
  • Height: 0.079" (2.00mm)
  • Inductance: 1µH
  • Current Rating: 5.8A
  • Saturation Current: 8.5A
  • Shielding: Shielded
  • DC Resistance: 26mOhm max
  • REACH Status: Unaffected
  • ECCN: EAR99
