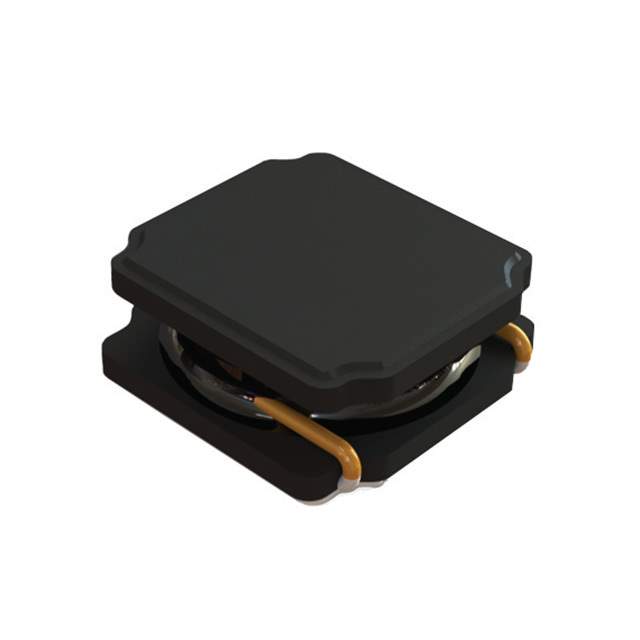

Same model may have multiple batches, images only for reference.

PA4334.222NLT

Name: PA4334.222NLT
Brand: Pulse
SKU: 963021
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA4334.222NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 1.2A 98 MOHM SMD / 2.2 µH Shielded Drum Core, Wirewound Inductor 1.2 A 98mOhm Max Nonstandard
Datasheet	PA4334.222NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PA4334.XXXNLT
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron
Inductance	2.2 µH
Tolerance	±30%
Current Rating (Amps)	1.2 A
Current - Saturation (Isat)	1.2A
Shielding	Shielded
DC Resistance (DCR)	98mOhm Max
Frequency - Self Resonant	55MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.126" L x 0.126" W (3.20mm x 3.20mm)
Height - Seated (Max)	0.047" (1.20mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	-PA4334.222NLT,553-3306-1,553-3306-2,553-3306-6
Standard Package	2,000
Win Source Part Number	963021-PA4334.222NLT
Ultra Librarian 3D Model	Ultra Librarian PA4334.222NLT CAD Model

Alternative Products

Description

The 963021-PA4334.222NLT is a fixed inductor from Pulse Electronics Power that has an inductance of 2.2 µH and a tolerance of ±30%.

Packaging: Tape and Reel
Standard Package: 2000
Shielding: Shielded
Core Material: Drum Core, Wirewound
DC Resistance (DCR): 98mOhm Max
Current Rating: 1.2 A
Application: Power supplies, consumer electronics, and automotive electronics
