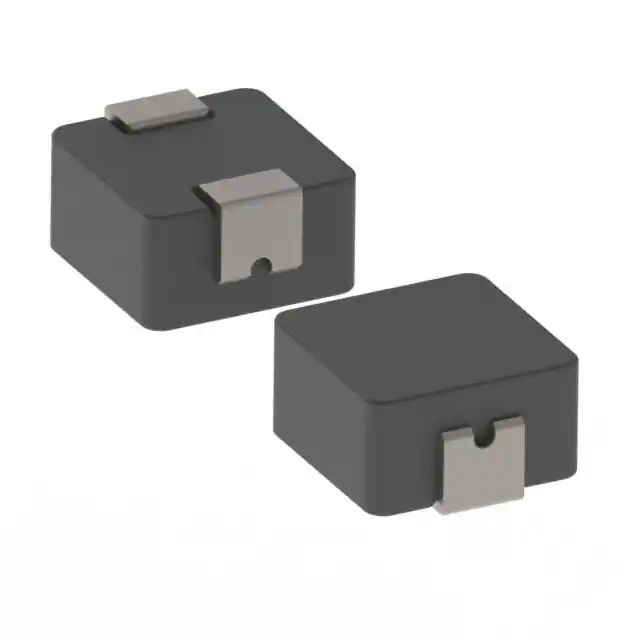

PA4340.103ANLT Pulse
Same model may have multiple batches, images only for reference.

PA4340.103ANLT

Part No PA4340.103ANLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 10UH 3.8A 103 MOHM SMD / 10 µH Shielded Molded Inductor 3.8 A 103mOhm Max Nonstandard
Datasheet
PA4340.103ANLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse Electronics
Series PA4340.XXXANLT
Package Tape & Reel
Product Status Active
Type Molded
Material - Core -
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 3.8 A
Current - Saturation (Isat) 2.5A
Shielding Shielded
DC Resistance (DCR) 103mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1353873-PA4340.103ANLT
Ultra Librarian 3D Model Ultra Librarian PA4340.103ANLT CAD Model

Description

The PA4340.103ANLT is a fixed inductor designed for various applications, manufactured by Pulse Electronics.

  • Temperature Range: -55°C to 155°C
  • Series: PA4340.XXXANLT
  • Package: Tape and Reel
  • Package/Case: Nonstandard
  • Mounting Type: Surface Mount
  • Tolerance: ±20%
  • Current Rating: 3.8A
