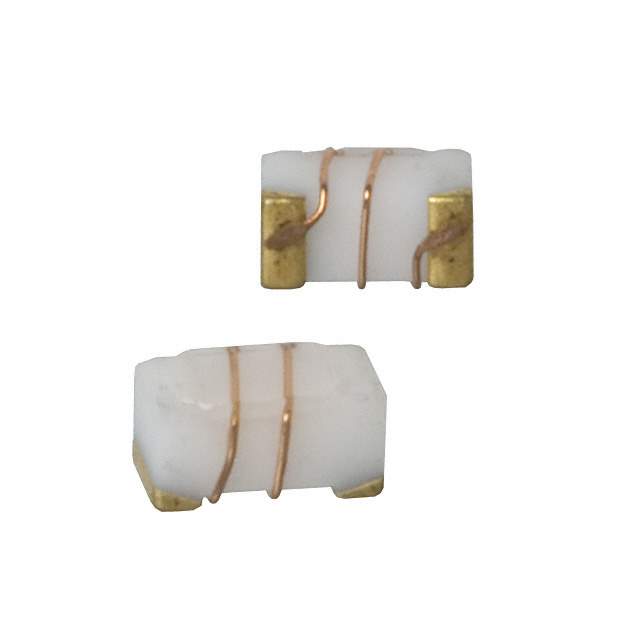

Same model may have multiple batches, images only for reference.

PE-0603CD680JTT

Name: PE-0603CD680JTT
Brand: Pulse
SKU: 271827
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PE-0603CD680JTT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 68NH 600MA 340 MOHM
Datasheet	PE-0603CD680JTT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Pulse Electronics Corporation
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ceramic
Inductance	68nH
Tolerance	±5%
Current Rating	600mA
DC Resistance (DCR)	340 mOhm Max
Q @ Freq	35 @ 200MHz
Frequency - Self Resonant	1.7GHz
Temperature Range - Operating	-40°C to 125°C
Frequency - Test	200MHz
Mounting	SMD (SMT)
Case / Package	0603 (1608 Metric)
Height - Seated (Max)	0.040" (1.02mm)
Win Source Part Number	101645-PE-0603CD680JTT
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PE-0603CD680JTT CAD Model

Alternative Products

Description

The 101645-PE-0603CD680JTT electronic component is manufactured by Pulse Electronics Corporation. It is a wirewound type inductor with a current rating of 600mA and an inductance of 68nH.

Type: Wirewound
Current Rating: 600mA
Inductance: 68nH
Height - Seated (Max): 0.040" (1.02mm)
Package: 0603 (1608 Metric)
Tolerance: ±5%
Material - Core: Ceramic
Q @ Freq: 35 @ 200MHz
Frequency - Self Resonant: 1.7GHz
Frequency - Test: 200MHz
DC Resistance (DCR): 340 mOhm Max
Win Source Part Number: 101645-PE-0603CD680JTT
Supply and Demand: Balanced
