Same model may have multiple batches, images only for reference.

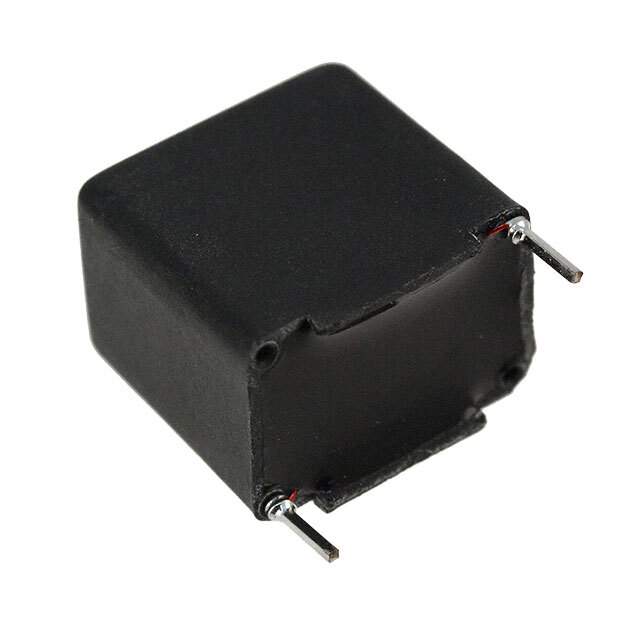

PE-52647NL Real Image
Same model may have multiple batches, images only for reference.

PE-52647NL

Part No PE-52647NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 330UH 1A 780 MOHM TH
Datasheet
PE-52647NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Type Toroidal
Inductance 330μH
Current Rating 1A
DC Resistance (DCR) 780 mOhm Max
Temperature Range - Operating -40°C to 130°C
Frequency - Test 20kHz
Mounting Through Hole
Height - Seated (Max) 0.710" (18.03mm)
Win Source Part Number 141098-PE-52647NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-52647NL CAD Model

Description

The Pulse Electronics Corporation 141098-PE-52647NL is a toroidal inductor with a current rating of 1A and an inductance of 330μH.

  • Current Rating: 1A
  • Inductance: 330μH
  • Height: 0.710" (18.03mm)
  • Mounting Technology: Through-hole
  • DC Resistance (DCR): 780 mOhm Max
  • Operating Temperature Range: -40°C to 130°C
  • Category: Inductors, Coils, Chokes
  • Packaging: Tube/rail
  • Popularity: Medium
  • Supply and Demand Status: Limited
