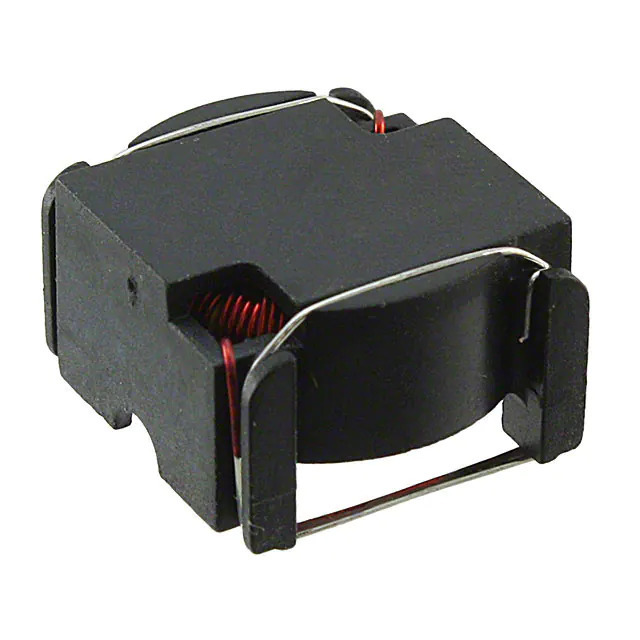

Same model may have multiple batches, images only for reference.

PE-53830SNL

Name: PE-53830SNL
Brand: Pulse
SKU: 1353529
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PE-53830SNL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 77UH 1.54A 200MOHM SMD / 77 µH Shielded Toroidal Inductor 1.54 A 200mOhm Nonstandard
Datasheet	PE-53830SNL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse Electronics
Series	-
Package	Bulk
Product Status	Active
Type	Toroidal
Material - Core	-
Inductance	77 µH
Tolerance	±20%
Current Rating (Amps)	1.54 A
Current - Saturation (Isat)	-
Shielding	Shielded
DC Resistance (DCR)	200mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 130°C
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.620" L x 0.600" W (15.75mm x 15.24mm)
Height - Seated (Max)	0.390" (9.91mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1353529-PE-53830SNL
Ultra Librarian 3D Model	Ultra Librarian PE-53830SNL CAD Model

Alternative Products

Description

The 1353529-PE-53830SNL is a fixed inductor from Pulse Electronics.

Category: Fixed Inductors
Temperature Range: -40°C to 130°C
Mounting Type: Surface Mount
Packaging: Bulk
Size: 0.620" L x 0.600" W (15.75mm x 15.24mm)
Height: 0.390" (9.91mm)
Inductance: 77µH
Current Rating: 1.54A
Shielding: Shielded
DC Resistance: 200mOhm
