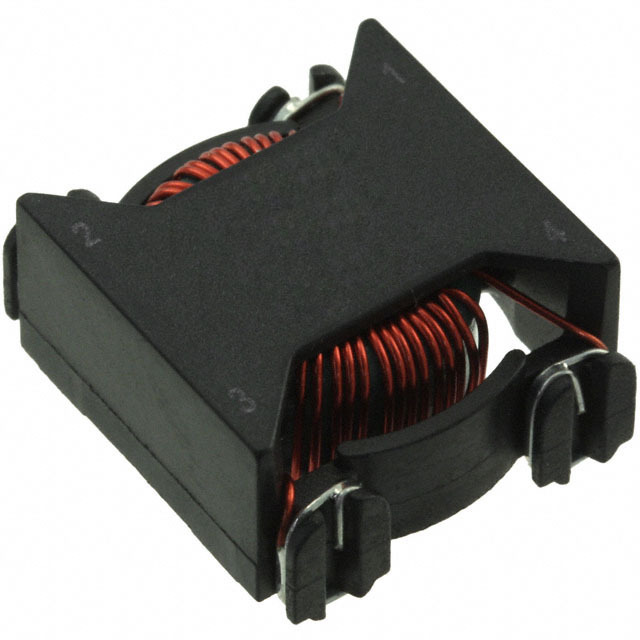

Same model may have multiple batches, images only for reference.
PE-53913 Pulse – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PE-53913

Part No PE-53913
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 1A 2LN SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Package Tube
Product Status Obsolete
Number of Lines 2
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 450mOhm
Voltage Rating - AC 250V
Operating Temperature -40°C ~ 130°C
Mounting Type Surface Mount
Size / Dimension 0.645" L x 0.560" W (16.38mm x 14.22mm)
Height (Max) 0.350" (8.89mm)
Package / Case Horizontal, 4 PC Pad
Ultra Librarian 3D Model Ultra Librarian PE-53913 CAD Model

Description

NULL
