Same model may have multiple batches, images only for reference.

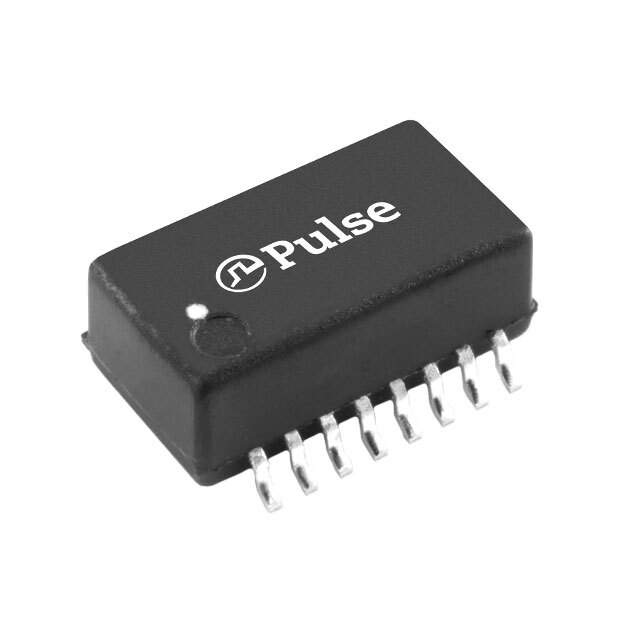

PE-69011NLT Real Image
Same model may have multiple batches, images only for reference.

PE-69011NLT

Part No PE-69011NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 8LN SMD
Datasheet
PE-69011NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 8
DC Resistance (DCR) (Max) 350 mOhm
Mounting SMD (SMT)
Height (Max) 0.200" (5.08mm)
Dimension Vertical, 16 Gull Wing
Win Source Part Number 209782-PE-69011NLT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-69011NLT CAD Model

Description

The PE-69011NLT from Pulse Electronics Corporation is a signal line filter designed for use in filters.

  • Application: Filters
  • Package: Vertical, 16 Gull Wing
  • Mounting Type: SMD (SMT)
  • DC Resistance (DCR): 350 mOhm
  • Packaging: Reel
  • Height: 0.200" (5.08mm)
  • Number of Lines: 8
  • Popularity: Medium
  • Supply and Demand Status: Limited
