Same model may have multiple batches, images only for reference.

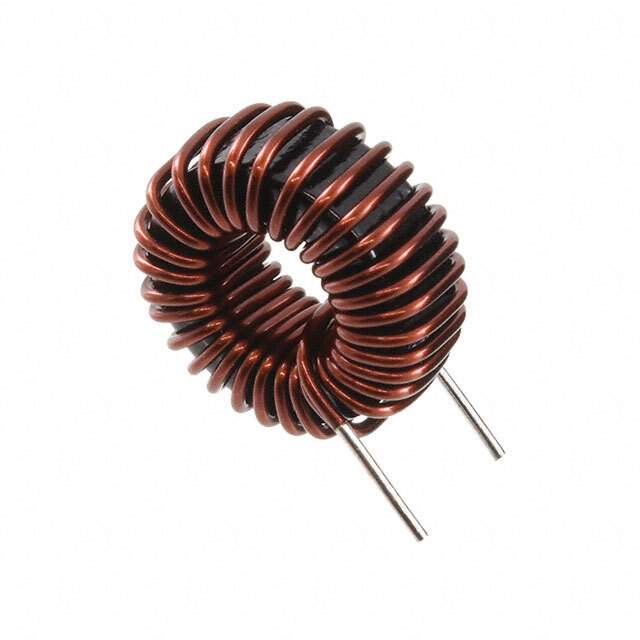

SNT-D30TF Real Image
Same model may have multiple batches, images only for reference.

SNT-D30TF

Part No SNT-D30TF
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SNT-D30TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 20 µH @ 100 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 98Ohm
Temperature Range - Operating -20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.236" W (9.50mm x 6.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-D
Other Names UDLSNT0D30TF00,399-SNT-D30TFTB
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276810-SNT-D30TF
Ultra Librarian 3D Model Ultra Librarian SNT-D30TF CAD Model

Description

The Kemet 1276810-SNT-D30TF is a signal line common mode choke filter with a current rating of 500mA.

  • Series: SNT
  • Standard Package: 500
  • Inductance: 20 µH @ 100 kHz
  • DC Resistance: 98Ohm
  • Package: Vertical, 2 PC pin through hole
  • Temperature Range: -20°C to 60°C
  • ECCN: EAR99
  • REACH: Unaffected
