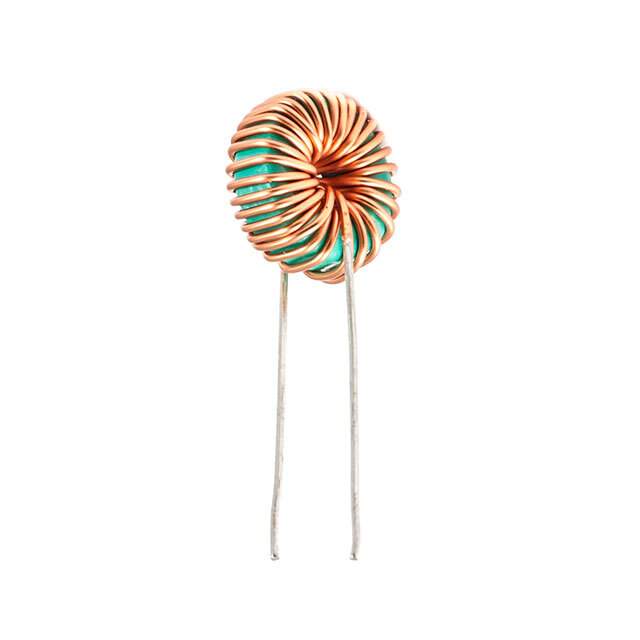

Same model may have multiple batches, images only for reference.

SN5-400

Name: SN5-400
Brand: Kemet
SKU: 1095373
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SN5-400
Manufacturer	Kemet
Catalog	Common Mode Chokes
Description	CMC 48UH 2A 2LN TH / 48 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 2A DCR 58mOhm
Datasheet	SN5-400 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	KEMET
Series	SN
Package	Bulk
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	48 µH @ 100 kHz
Current Rating (Max)	2A
DC Resistance (DCR) (Max)	58mOhm
Temperature Range - Operating	-25°C ~ 105°C
Mounting Type	Through Hole
Height (Max)	0.571" (14.50mm)
Package / Case	Vertical, No Base, 2 PC Pin
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	UALSN540000000,399-20549
Standard Package	2,000
Win Source Part Number	1095373-SN5-400
Ultra Librarian 3D Model	Ultra Librarian SN5-400 CAD Model

Alternative Products

Description

The Kemet SN5-400 Common Mode Choke is a high-quality filter that is perfect for use in power line applications.

Height: 0.571" (14.50mm)
Number of Lines: 2
Inductance: 48 µH @ 100 kHz
Maximum DC Resistance (DCR): 58mOhm
