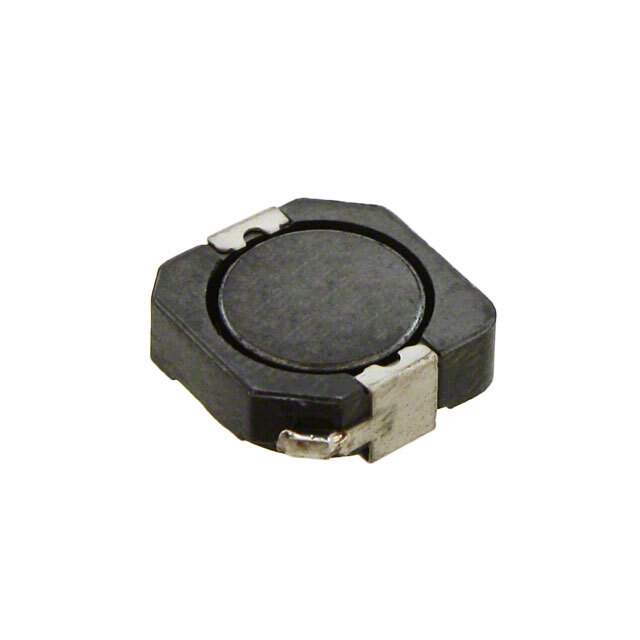

PF0560.382NLT 3.8UH Real Image
Same model may have multiple batches, images only for reference.

PF0560.382NLT 3.8UH

Part No PF0560.382NLT 3.8UH
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 3.8UH 5.5A 13 MOHM SMD
Datasheet
PF0560.382NLT 3.8UH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 3.8μH
Tolerance ±30%
Current Rating 5.5A
Current - Saturation 6A
DC Resistance (DCR) 13 mOhm Max
Frequency - Self Resonant 39MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 045736-PF0560.382NLT 3.8UH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PF0560.382NLT 3.8UH CAD Model

Description

The Pulse Electronics Corporation wirewound inductor is a highly reliable electronic component that is designed to provide excellent performance and durability. With an inductance of 3.8μH and a current rating of 5.5A, this inductor is perfect for use in a wide range of applications.

  • Manufacturer: Pulse Electronics Corporation.
  • Inductance: 3.8μH.
  • Current Rating: 5.5A.
  • Height: 0.157" (4.00mm).
  • Mounting: SMD (SMT) technology.
  • Tolerance: ±30%.
  • DC Resistance (DCR): 13 mOhm Max.
  • Package: Reel - TR.
  • Category: Inductors, Coils, Chokes.
