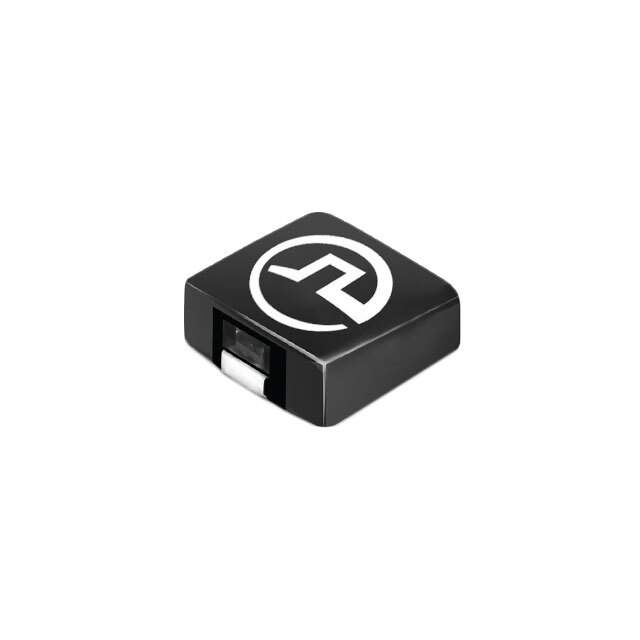

Same model may have multiple batches, images only for reference.

PG0255.222NLT

Name: PG0255.222NLT
Brand: Pulse
SKU: 504142
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PG0255.222NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 13A 7 MOHM SMD
Datasheet	PG0255.222NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Pulse Electronics Corporation
Packaging	Reel - TR
Status	Active
Type	Wirewound
Inductance	2.2μH
Tolerance	±15%
Current Rating	13A
Current - Saturation	20A
DC Resistance (DCR)	7 mOhm Max
Temperature Range - Operating	-40°C to 125°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.157" (4.00mm)
Win Source Part Number	1087701-PG0255.222NLT
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PG0255.222NLT CAD Model

Alternative Products

Description

The PG0255.222NLT is a wirewound inductor from Pulse Electronics Corporation.

Inductance: 2.2μH
Current Rating: 13A
DC Resistance (DCR): 7 mOhm Max
Tolerance: ±15%
Height: 0.157" (4.00mm)
Mounting: Surface Mount Technology (SMT)
Saturation Current: 20A
Temperature Range: -40°C to 125°C
