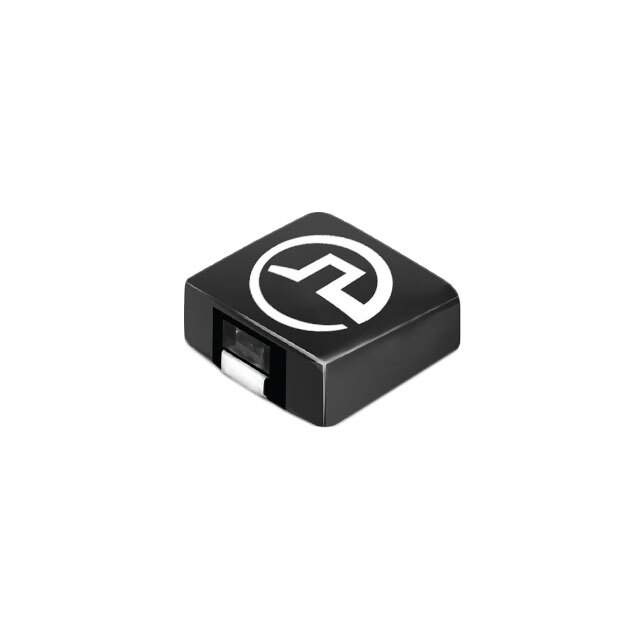

Same model may have multiple batches, images only for reference.

PG0426.221NLT

Name: PG0426.221NLT
Brand: Pulse
SKU: 997022
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PG0426.221NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 220NH 26A 2.2 MOHM SMD / 220 nH Shielded Wirewound Inductor 26 A 2.2mOhm Max Nonstandard
Datasheet	PG0426.221NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PG0426NL
Package	Tape & Reel
Type	Wirewound
Inductance	220 nH
Tolerance	±20%
Current Rating (Amps)	26 A
Current - Saturation (Isat)	40A
Shielding	Shielded
DC Resistance (DCR)	2.2mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.295" L x 0.276" W (7.50mm x 7.00mm)
Height - Seated (Max)	0.126" (3.20mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	PG0426.221NLT-ND,553-PG0426.221NLTDKR,553-PG0426.221NLTCT,553-PG0426.221NLTTR
Standard Package	1,400
Win Source Part Number	997022-PG0426.221NLT
Ultra Librarian 3D Model	Ultra Librarian PG0426.221NLT CAD Model

Alternative Products

Description

The PG0426.221NLT is a fixed inductor from Pulse Electronics Power.

Series: PG0426NL
Package: Tape and Reel
Type: Shielded Wirewound
Inductance: 220 nH
Tolerance: ±20%
Dimensions: 0.295" L x 0.276" W (7.50mm x 7.00mm)
DC Resistance: 2.2mOhm
Current Rating: 26 A
