Same model may have multiple batches, images only for reference.

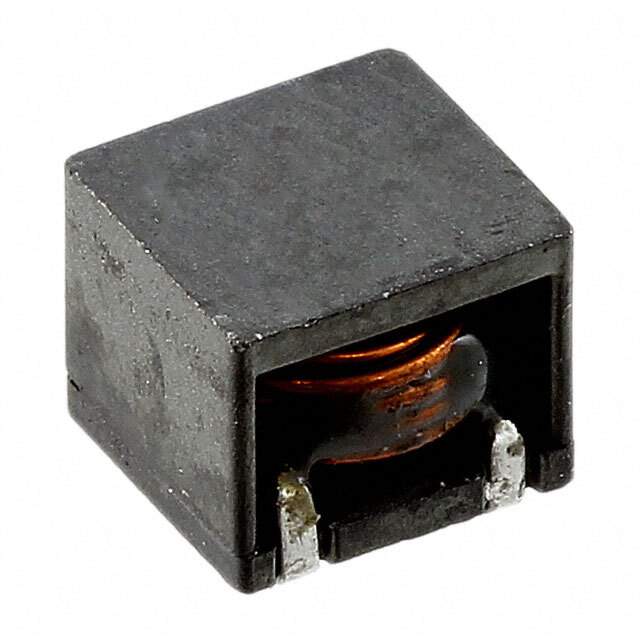

PG0871.472NLT Real Image
Same model may have multiple batches, images only for reference.

PG0871.472NLT

Part No PG0871.472NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 4.7UH 6.7A 17 MOHM SMD / 4.7 µH Shielded Wirewound Inductor 6.7 A 17mOhm Nonstandard
Datasheet
PG0871.472NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PG0871NL
Package Tape & Reel
Type Wirewound
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 6.7 A
Current - Saturation (Isat) 9.3A
Shielding Shielded
DC Resistance (DCR) 17mOhm
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.299" L x 0.291" W (7.60mm x 7.40mm)
Height - Seated (Max) 0.252" (6.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-2169-2,553-2169-1,553-2169-6,PG0871.472NLT-ND
Standard Package 700
Win Source Part Number 1004138-PG0871.472NLT
Ultra Librarian 3D Model Ultra Librarian PG0871.472NLT CAD Model

Description

The Pulse Electronics Power PG0871.472NLT is a wirewound fixed inductor that is part of the Inductors, Coils, Chokes category.

  • Inductance: 4.7µH
  • Tolerance: ±20%
  • Shielded: Yes
  • DC Resistance (DCR): 17mOhm
  • Current Rating: 6.7A
  • Height Seated: 0.252" (6.40mm)
  • Dimension: 0.299" L x 0.291" W (7.60mm x 7.40mm)
  • Mounting Technology: SMD (SMT)
  • Packaging: Tape & Reel
  • Operating Temperature: -40°C to 130°C
