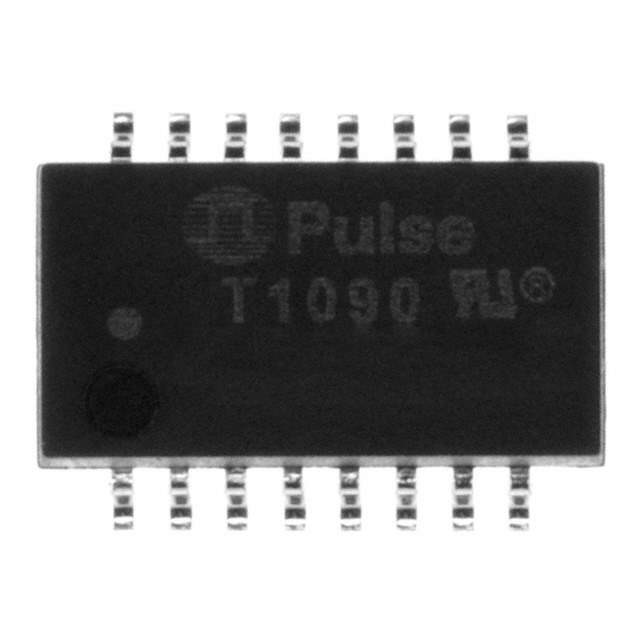

T1090T Real Image
Same model may have multiple batches, images only for reference.

T1090T

Part No T1090T
Manufacturer Pulse
Catalog Pulse Transformers
Description T1/E1 TRANSFORMER,DUAL BH / Telecom Transformer 2(1CT:2CT) 0.7Ohm/0.7Ohm Prim. DCR 16 Terminal Gull Wing SMD
Datasheet
T1090T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Series *
Packaging Reel package
Mounting SMD
Dimension 0.505" L x 0.280" W (12.83mm x 7.11mm)
Height - Seated (Maximum) 0.245" (6.22mm)
Win Source Part Number 796010-T1090T
Popularity Medium
Supply and Demand Status Limited
Family Name T1
Introduction Date February 08, 1999
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian T1090T CAD Model

Description

The Pulse Electronics T1090T is a transformer that is perfect for use in various electronic applications. It has a dimension of 0.505" L x 0.280" W (12.83mm x 7.11mm) and a height-seated maximum of 0.245" (6.22mm).

  • Mounting: Surface Mount
  • Package: Reel
