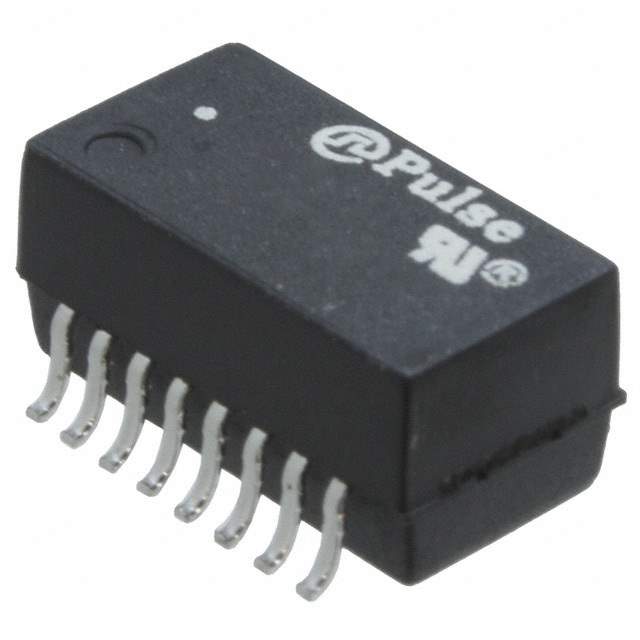

The TX1099NL-T is a Gigabit Ethernet transformer module manufactured by Pulse Electronics. It is specifically designed for 10/100/1000Base-T Ethernet applications, providing crucial signal isolation and impedance matching to ensure reliable data transmission. The '-T' suffix indicates that this particular variant is packaged on tape and reel for automated assembly processes.

Applications

• High-speed Ethernet networking
• Network interface cards (NICs)
• Routers and switches
• Embedded systems with Gigabit Ethernet capabilities
• Industrial automation equipment

Features

• Supports 10/100/1000Base-T Ethernet speeds
• Surface mount technology (SMT)
• Packaged on tape and reel for automated assembly
• Compliant with IEEE 802.3ab standards
• High isolation voltage to protect against voltage surges
• Low insertion loss for optimal signal integrity
• Excellent common mode rejection ratio (CMRR)
• RoHS compliant

Benefits

• Optimized for automated assembly: Tape and reel packaging reduces manufacturing costs and improves production efficiency.
• Reliable Gigabit Ethernet performance: Provides robust signal isolation and impedance matching for high-speed data transmission.
• Protection against voltage surges: High isolation voltage safeguards network devices from damage.
• Industry-standard compliance: Ensures compatibility with a wide range of Ethernet devices.
• Improved signal integrity: Low insertion loss and excellent common mode rejection minimize signal degradation and ensure data accuracy.

Additional Details

The TX1099NL-T is engineered to meet the demanding requirements of modern Gigabit Ethernet systems. Its surface mount design simplifies board layout and reduces overall system size. The tape and reel packaging is specifically designed for use with automated pick-and-place machines, streamlining the manufacturing process. The high isolation voltage provides a significant margin of safety, preventing damage from transient voltage spikes. The transformer's performance characteristics are meticulously tuned to minimize signal distortion and maximize data throughput. Adherence to IEEE 802.3ab standards ensures interoperability with other Gigabit Ethernet components. The TX1099NL-T is constructed using high-quality materials and subjected to rigorous testing to ensure long-term reliability in a variety of operating environments.
