Same model may have multiple batches, images only for reference.

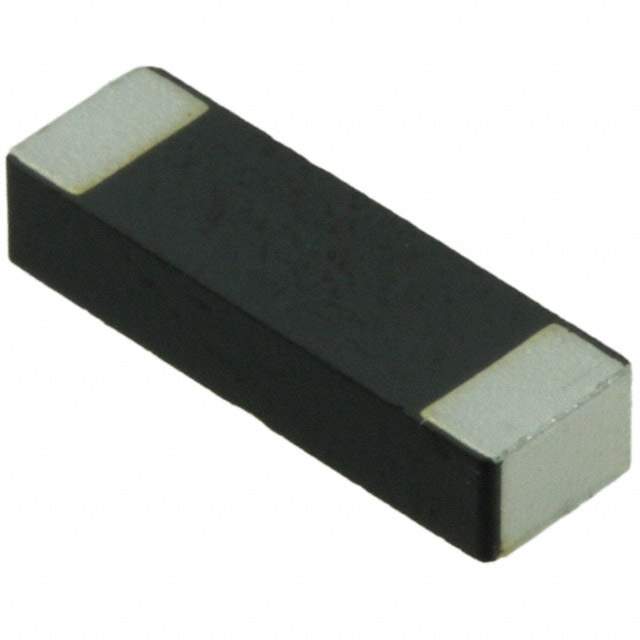

W3010 Real Image
Same model may have multiple batches, images only for reference.

W3010

Part No W3010
Manufacturer Pulse
Catalog RF Antennas
Description ANTENNA GPS CERAMIC 1.575GHZ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse
Standard Package 1
Category RF/IF and RFID
Family RF Antennas
Packaging *
Frequency Group UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) 1.575GHz
Antenna Type Chip
Number of Bands 1
Return Loss -18dB
Gain 2.8dBi
Termination Solder
Mounting Style SMD/SMT
Height (Max) 0.079" (2.00mm)
Applications GPS
Catalog Pulse - Embedded
Win Source Part Number 043671-W3010
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian W3010 CAD Model

Description

The Pulse W3010 is a chip antenna suitable for GPS applications.

  • Return Loss: -18dB
  • Gain: 2.8dBi
  • Height (max): 0.079" (2.00mm)
  • Frequency Group: UHF (1 GHz ~ 2 GHz)
  • Frequency (center/band): 1.575GHz
  • Number of Bands: 1
  • Mounting: SMD/SMT
  • Termination: Solder
