Same model may have multiple batches, images only for reference.

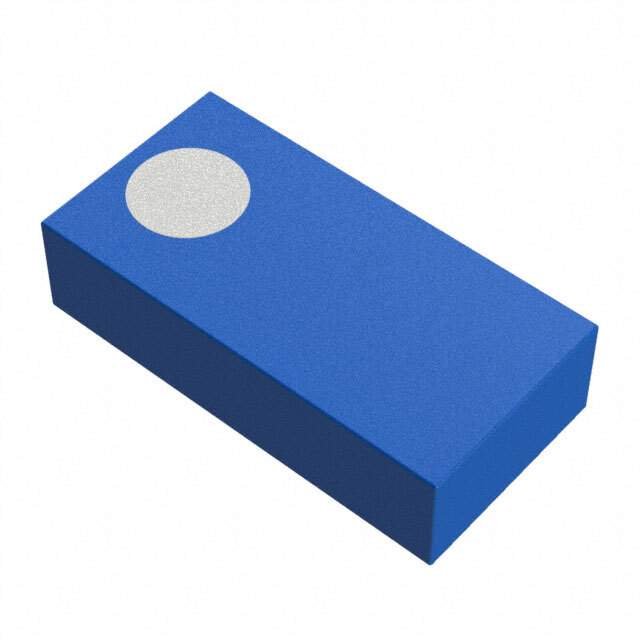

ANT1608LL14R2400A Real Image
Same model may have multiple batches, images only for reference.

ANT1608LL14R2400A

Part No ANT1608LL14R2400A
Manufacturer PulseLarsen Antennas
Catalog RF Antennas
Description RF ANT 2.45GHZ CHIP SOLDER SMD / 2.45GHz Bluetooth, ISM, Wi-Fi, Zigbee™ Chip RF Antenna 2.4GHz ~ 2.5GHz 2dBi Solder Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr PulseLarsen Antennas
Series 1608
Package Tape & Reel
RF Family/Standard 802.15.4, Bluetooth, General ISM, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.45GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 6
Gain 2dBi
Power - Max 1 W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.016" (0.40mm)
Applications Bluetooth, ISM, Wi-Fi, Zigbee™
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names 311-4588-1,311-4588-6,311-4588-2
Standard Package 4,000
Win Source Part Number 1112959-ANT1608LL14R2400A
Ultra Librarian 3D Model Ultra Librarian ANT1608LL14R2400A CAD Model

Description

The ANT1608LL14R2400A is a chip antenna from PulseLarsen Antennas.

  • Applications: Bluetooth, ISM, Wi-Fi, Zigbee
  • Frequency Range: 2.4GHz to 2.5GHz
  • Gain: 2dBi
  • Packaging: Tape and Reel
  • Standard Package: 4,000
  • VSWR: 6
  • Series: 1608
