Same model may have multiple batches, images only for reference.

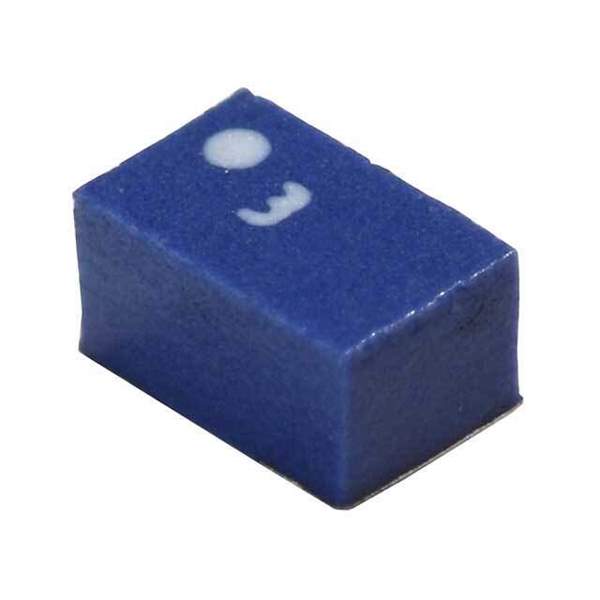

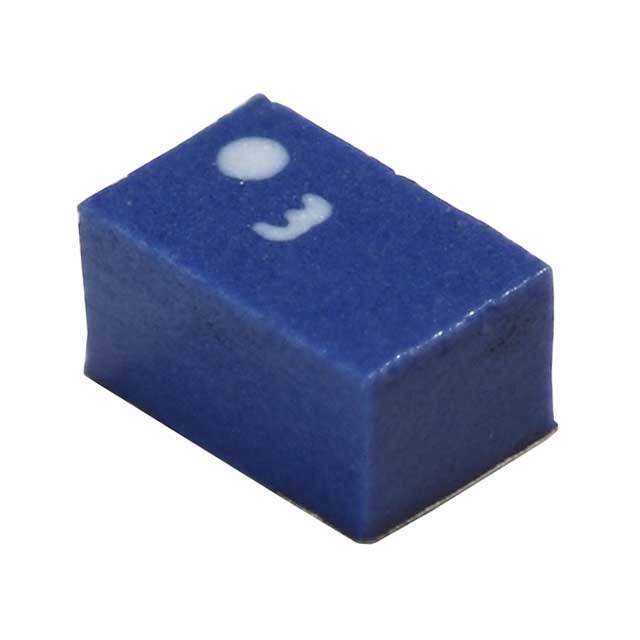

ANT2012LL13R2400A Real Image
Same model may have multiple batches, images only for reference.

ANT2012LL13R2400A

Part No ANT2012LL13R2400A
Manufacturer PulseLarsen Antennas
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD / 2.4GHz Bluetooth, WLAN, Zigbee™ Chip RF Antenna 2.408GHz ~ 2.492GHz 2.72dBi Solder Surface Mount
Datasheet
ANT2012LL13R2400A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr PulseLarsen Antennas
Package Tape & Reel
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.408GHz ~ 2.492GHz
Antenna Type Chip
Number of Bands 1
Return Loss -22dB
Gain 2.72dBi
Power - Max 1 W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.039" (1.00mm)
Applications Bluetooth, WLAN, Zigbee™
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names 311-1534-6,311-1534-2,CAN4311714132454K,311-1534-1
Standard Package 4,000
Win Source Part Number 1125790-ANT2012LL13R2400A
Ultra Librarian 3D Model Ultra Librarian ANT2012LL13R2400A CAD Model

Description

The PulseLarsen Antennas ANT2012LL13R2400A is an RF antenna that is ideal for use in a variety of electronic applications.

  • Antenna Type: Chip
  • Standard Package: 4,000
  • Win Source Part Number: 1125790-ANT2012LL13R2400A
  • Category: RF/IF and RFID
  • RoHS Compliant: Yes
