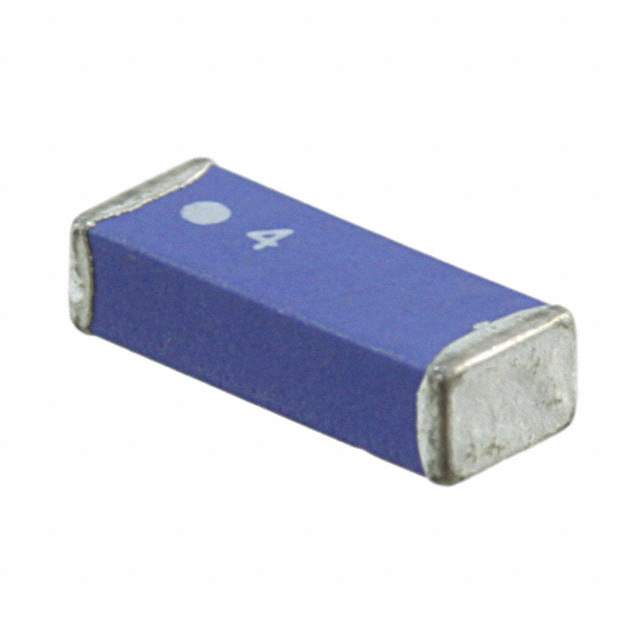

ANT5320LL04R2455A Real Image
Same model may have multiple batches, images only for reference.

ANT5320LL04R2455A

Part No ANT5320LL04R2455A
Manufacturer PulseLarsen Antennas
Catalog RF Antennas
Description RF ANT 2.4GHZ/5GHZ CHIP SLDR SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 22 Weeks
Features 2.4GHz, 5GHz Wi-Fi Chip RF Antenna 2.375GHz ~ 2.525GHz, 5.05GHz ~ 5.95GHz 2.09dBi, 4.32dBi Solder Surface Mount
Manufacturer PulseLarsen Antennas
Series 5320
Package Reel - TR
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Part Number 311-1545-6, 311-1545-2, CAN4311753042522K, 311-1545-1
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 865742-ANT5320LL04R2455A
Ultra Librarian 3D Model Ultra Librarian ANT5320LL04R2455A CAD Model

Description

The 865742-ANT5320LL04R2455A is a high-quality RF/IF and RFID antenna manufactured by PulseLarsen Antennas. It is designed to operate @ 2.4GHz and 5GHz, making it an ideal choice for Wi-Fi chip RF applications.

  • Frequency: 2.4GHz and 5GHz
  • Mounting Type: Solder Surface Mount
  • Package Type: Reel - TR
  • REACH: Unaffected
  • Estimated Production Lead Time: 22 weeks
