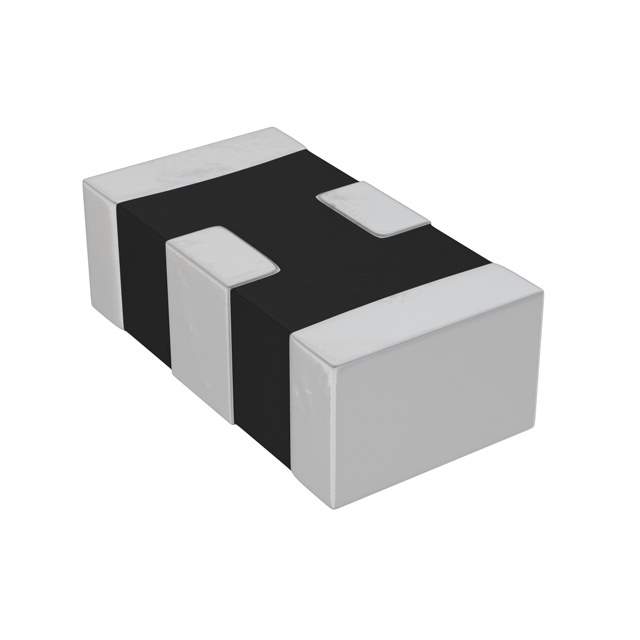

The CX0603MRX7R0BB222 is a ceramic capacitor manufactured by PulseLarsen Antennas. It is a surface-mount multilayer ceramic capacitor (MLCC) designed for general-purpose applications in electronic circuits. This capacitor provides stable capacitance over a wide range of temperatures and voltages, making it suitable for decoupling, filtering, and energy storage.

Applications

• Decoupling: Used to suppress noise and voltage fluctuations in power supplies and digital circuits.
• Filtering: Implemented in filters to remove unwanted frequency components from signals.
• Bypass: Provides a low-impedance path for AC signals to ground.
• Timing circuits: Used in oscillators and timers for frequency control.
• General-purpose applications: Suitable for a wide range of electronic circuits requiring stable capacitance.

Features

• High capacitance value: Offers a capacitance of 2.2nF (222).
• X7R dielectric: Provides stable capacitance over temperature variations.
• Surface-mount package: Enables automated assembly and compact designs.
• Small size (0603): Saves board space and allows for high-density component placement.
• RoHS compliant: Meets environmental regulations for hazardous substances.

Benefits

• Improved circuit stability: Reduces noise and voltage fluctuations for reliable operation.
• Enhanced signal integrity: Filters out unwanted frequency components for clean signals.
• Reduced board space: Enables compact and efficient circuit designs.
• Simplified assembly: Facilitates automated manufacturing processes.
• Environmentally friendly: Complies with environmental regulations for responsible electronics manufacturing.

Additional Details

The CX0603MRX7R0BB222 has a voltage rating of typically 50V. Its X7R dielectric provides a capacitance variation of ±15% over the temperature range of -55°C to +125°C. It is important to consider the voltage and temperature requirements of the application when selecting a capacitor. Refer to the manufacturer's datasheet for detailed electrical characteristics, soldering guidelines, and reliability data. The 0603 package size refers to dimensions of 0.06 inch by 0.03 inch.
