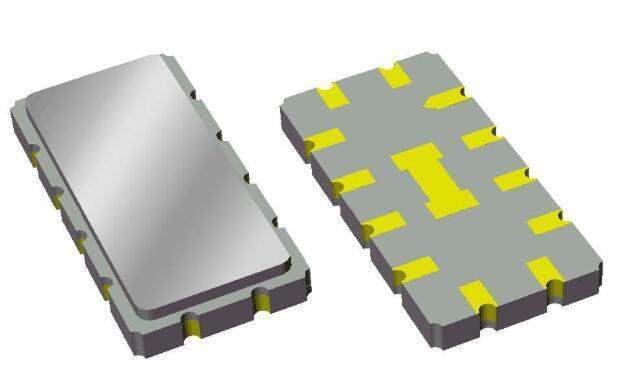

Same model may have multiple batches, images only for reference.
854672 Qorvo
Same model may have multiple batches, images only for reference.

854672

Part No 854672
Manufacturer Qorvo US Inc.
Catalog Signal Conditioners and Isolators
Description Signal Conditioning 70MHz BW 24MHz SAW Filter
Datasheet
854672 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Qorvo
Frequency 70 MHz
Bandwidth 24.45 MHz
Impedance 50 Ohms
Termination Style SMD/SMT
Package / Case 13.3 mm x 6.5 mm
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Packaging Cut Tape
Insertion Loss 16.25 dB
Ultra Librarian 3D Model Ultra Librarian 854672 CAD Model

Description

Features
  • Usable bandwidth of 24 MHz
  • Typical 3 dB bandwidth of 24.45 MHz
  • Low loss
  • High attenuation
  • Single-ended operation, 50Ω
  • Ceramic Surface Mount Package (SMP)
  • Hermetic
