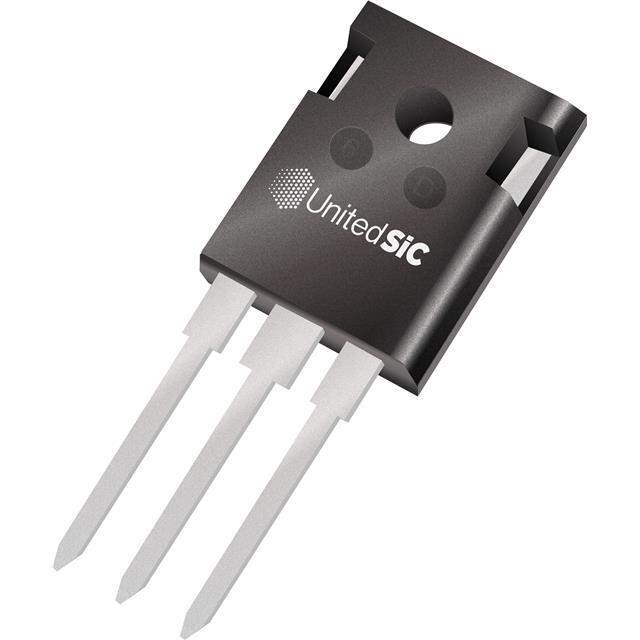

UF3C120400K3S Real Image
Same model may have multiple batches, images only for reference.

UF3C120400K3S

Part No UF3C120400K3S
Manufacturer Qorvo US Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description SICFET N-CH 1200V 7.6A TO247-3 / N-Channel 1200 V 7.6A (Tc) 100W (Tc) Through Hole TO-247-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Qorvo
Package Tube
FET Type N-Channel
Technology SiCFET (Cascode SiCJFET)
Drain to Source Voltage (Vdss) 1200 V
Current - Continuous Drain (Id) @ 25°C 7.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 12V
Rds On (Max) @ Id, Vgs 515mOhm @ 5A, 12V
Vgs(th) (Max) @ Id 6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs 27 nC @ 15 V
Vgs (Max) ±25V
Input Capacitance (Ciss) (Max) @ Vds 740 pF @ 100 V
Power Dissipation (Max) 100W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-247-3
Package / Case TO-247-3
Base Product Number UF3C120400
Standard Package 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1351306-UF3C120400K3S
Ultra Librarian 3D Model Ultra Librarian UF3C120400K3S CAD Model

Description

The UF3C120400K3S is an N-channel SiCFET (Cascode SiCJFET) transistor designed for use in power electronics applications.

  • Channel Type: N-Channel
  • Type: SiCFET (Cascode SiCJFET)
  • Drain to Source Voltage (Vdss): 1200V
  • Power Dissipation: 100W (Tc)
  • Mounting Type: Through Hole
  • Package: TO-247-3
  • Supplier Device Package: TO-247-3
  • Vgs (Max): ±25V
  • Operating Temperature: -55°C to 175°C (TJ)
  • Manufacturer: Qorvo
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • HTSUS: 8541.29.0095
