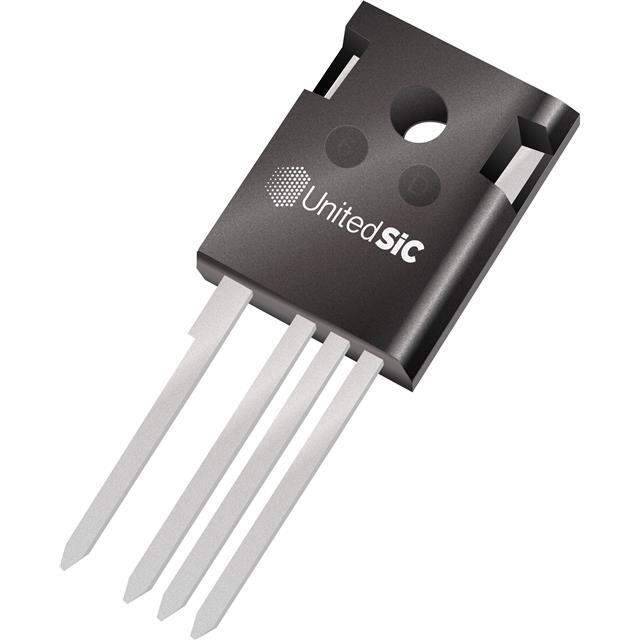

The UJ4SC075006K4S transistor is an N-Channel SiCFET designed for high-speed switching applications. The supplier is Qorvo.

• Type: N-Channel SiCFET
• Technology: Cascode SiCJFET
• Drive Voltage (Max Rds On, Min Rds On): 12V
• Drain to Source Voltage (Vdss): 750V
• Power Dissipation (Max): 714W (Tc)
• Current - Continuous Drain (Id): 120A (Tc)
• Rds On (Max): 7.4mOhm @ 80A, 12V
• Vgs(th) (Max): 6V @ 10mA
• Gate Charge (Qg) (Max) @ Vgs: 164 nC @ 15V
• Input Capacitance (Ciss) (Max) @ Vds: 8374 pF @ 400V
• Mounting Type: Through Hole
• Package/Case: TO-247-4
• Temperature Range: -55°C ~ 175°C (TJ)
