Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
RF Family/Standard Bluetooth, Cellular
Protocol Bluetooth v3.0, GSM, GPRS
Frequency 850MHz, 900MHz, 1.8GHz, 1.9GHz
Data Rate 85.6kbps
Sensitivity -109dBm
Serial Interfaces UART
Antenna Type Antenna Not Included
Voltage - Supply 3.3V ~ 4.6V
Current - Receiving 1.3mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 52-SMD Module
Base Product Number M66
MSL Level 3 (168 Hours)
ECCN 5A992C SC
HTSUS 8517.62.0090
Other Names 2958-M66FB-03-STDCT,2958-M66FB-03-STDTR,2958-M66FB-03-STDDKR
Standard Package 250
Win Source Part Number 992649-M66FB-03-STD
Ultra Librarian 3D Model Ultra Librarian M66FB-03-STD CAD Model

Description

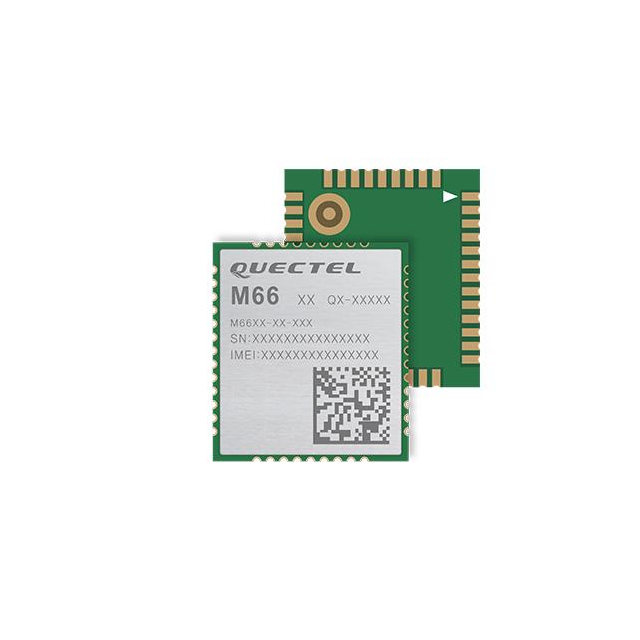

M66FB-03-STD from Quectel is an RF transceiver module intended for wireless design projects where compact integration, certified module sourcing, and faster development cycles are important. Engineers typically evaluate modules in this category for embedded connectivity in industrial controls, telemetry equipment, smart devices, and remote monitoring platforms, especially when reducing RF design complexity is a priority. As a Quectel offering, this part may be relevant for teams seeking ecosystem support, documentation, and long-term supply planning, but the exact feature set should be confirmed through the official datasheet and manufacturer resources. The current lifecycle status for M66FB-03-STD is information not available, so procurement and design teams should assess supply continuity before committing it to new programs. RoHS compliance information is also not available from the provided data. For regulated products and export-sensitive applications, engineers should request the latest compliance declarations, material content information, and manufacturer confirmation before production release.
