Part No R223424800
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF)

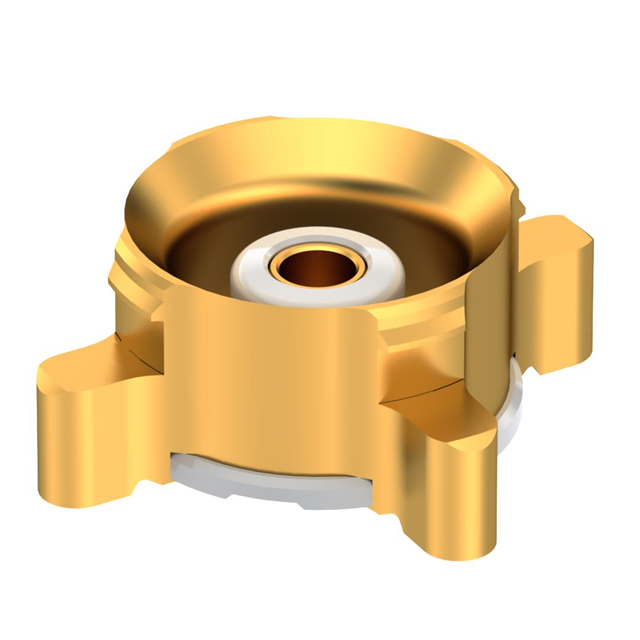

Description MMBX F F SMT TR750 / MMBX Connector Jack, Female Socket 50Ohm Surface Mount Solder
Datasheet
R223424800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Radiall USA, Inc.
Package Tape & Reel
Connector Style MMBX
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 155°C
Voltage Rating 330 V
Mating Cycles 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 2201-R223424800CT,R223.424.800,2201-R223424800DKR,2201-R223424800TR
Standard Package 750
Win Source Part Number 1168809-R223424800
Ultra Librarian 3D Model Ultra Librarian R223424800 CAD Model

Description

The R223424800 is an MMBX connector that has a female socket jack and a snap-on fastening type manufactured by Radiall USA, Inc..

  • Fastening Type: Snap-On
  • Voltage Rating: 330 V
  • Maximum Frequency: 12.4 GHz
  • Win Source Part Number: 1168809-R223424800
