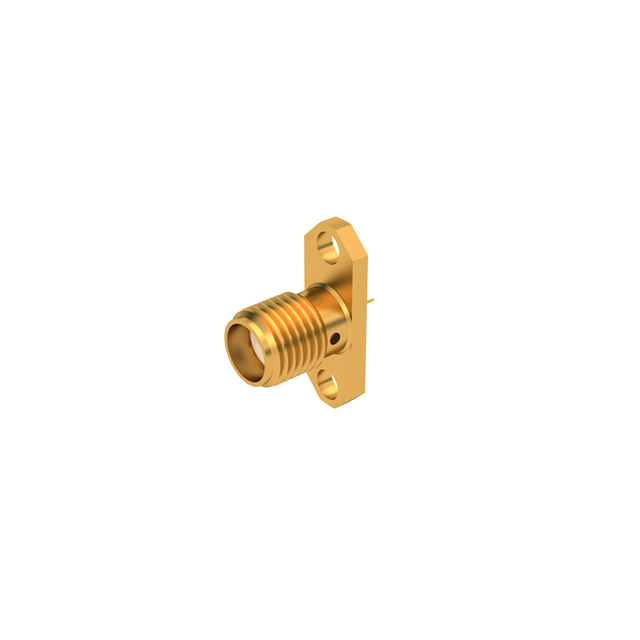

R125463000 Real Image
Same model may have multiple batches, images only for reference.

R125463000

Part No R125463000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description SMA / 2 HOLE FLANGE JACK RECEPTA / SMA Connector Jack, Female Socket 50Ohm Panel Mount, Through Hole Solder
Datasheet
R125463000 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Radiall USA, Inc.
Package Bulk
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount, Through Hole
Mounting Feature Flange
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Features Extended Insulation
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Stainless Steel
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 500
Base Product Number R12546
Standard Package 100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1339900-R125463000
Ultra Librarian 3D Model Ultra Librarian R125463000 CAD Model

Description

The Radiall USA, Inc. R125463000 is a coaxial connector assembly manufactured by Radiall USA, Inc.

  • Design: Extended Insulation
  • Connector Type: Female Socket
  • Fastening Type: Threaded
  • Connector Style: SMA
  • Voltage Rating: 500V
  • Frequency Range: Up to 18GHz
  • Impedance: 50Ohm
  • Package: Bulk
  • Standard Package: 100
  • Material: Stainless Steel
  • Housing Color: Gold
  • Body Finish: Gold
  • Center Contact Plating: Gold
