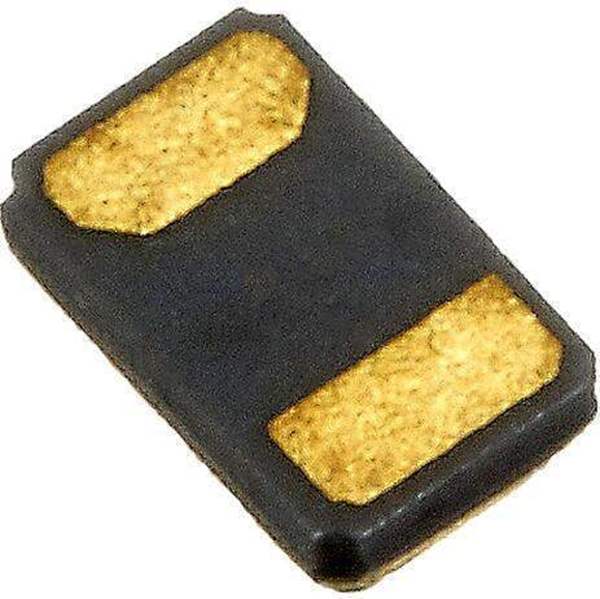

H130A-8.000-18-2030-EXT-TR Raltron Electronics
Same model may have multiple batches, images only for reference.

H130A-8.000-18-2030-EXT-TR

Part No H130A-8.000-18-2030-EXT-TR
Manufacturer Raltron Electronics Corporation
Catalog Crystals
Description CRYSTAL 8.0000MHZ 18PF SMD
Datasheet
H130A-8.000-18-2030-EXT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Raltron Electronics
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
ESR (Equivalent Series Resistance) 85 Ohms
Load Capacitance 18pF
Operating Mode Fundamental
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.043" (1.10mm)
Win Source Part Number WS1306008-H130A-8.000-18-2030-EXT-TR
Ultra Librarian 3D Model Ultra Librarian H130A-8.000-18-2030-EXT-TR CAD Model

Description

8 MHz ±20ppm Crystal 18pF 85 Ohms 2-SMD, No Lead
