Same model may have multiple batches, images only for reference.

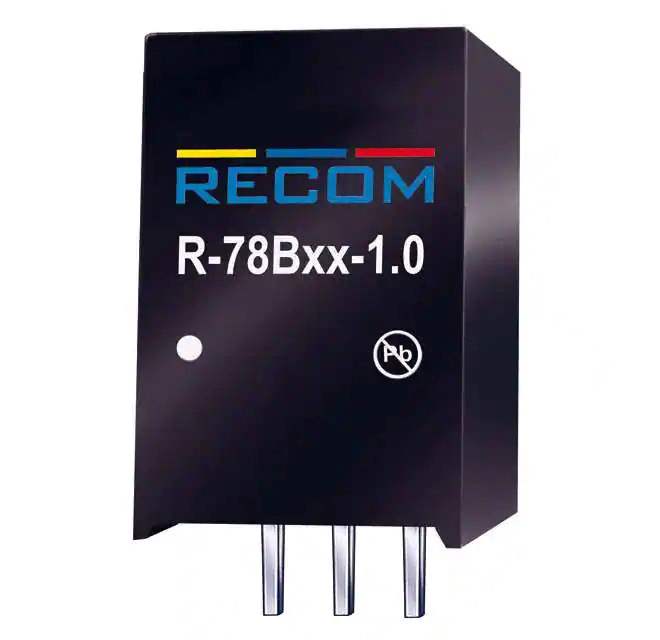

R-78B15-1.0 Real Image
Same model may have multiple batches, images only for reference.

R-78B15-1.0

Part No R-78B15-1.0
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 15W / Linear Regulator Replacement DC DC Converter 1 Output 15V 1A 20V - 32V Input
Datasheet
R-78B15-1.0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Recom Power
Series INNOLINE R-78Bxx-1.0
Package Tube
Product Status Active
Type Linear Regulator Replacement
Number of Outputs 1
Voltage - Input (Min) 20V
Voltage - Input (Max) 32V
Voltage - Output 1 15V
Current - Output (Max) 1A
Power (Watts) 15 W
Applications ITE (Commercial)
Features OTP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 97%
Mounting Type Through Hole
Package / Case 3-SIP Module
Size / Dimension 0.45" L x 0.33" W x 0.69" H (11.5mm x 8.5mm x 17.5mm)
Base Product Number R-78B15
Standard Package 42 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 847701-R-78B15-1.0
Ultra Librarian 3D Model Ultra Librarian R-78B15-1.0 CAD Model

Description

The R-78B15-1.0 is a linear regulator replacement power supply module designed for power supplies in board mount applications.

  • Features: OTP (Over Temperature Protection), SCP (Short Circuit Protection)
  • Size: 0.45" L x 0.33" W x 0.69" H (11.5mm x 8.5mm x 17.5mm)
  • Application: ITE (Commercial)
  • Power: 15W
  • Maximum Output Current: 1A
  • Output Voltage: 15V
  • Input Voltage Range: 20V to 32V
  • Efficiency: 97%
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Through Hole
  • Package: 3-SIP Module
  • Product Status: Active
  • Manufacturer: Recom Power
  • REACH: Unaffected
  • California Proposition 65 Warning: Yes
